22152116

Headers, Receptacles, Female Sockets Overview

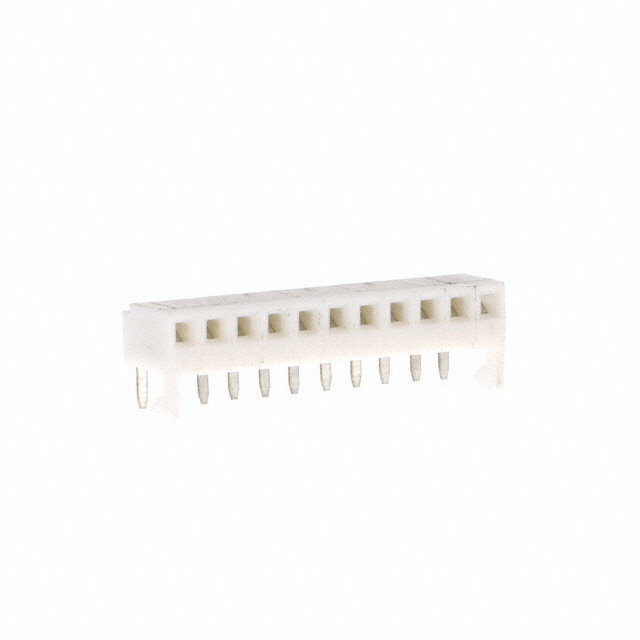

The Molex 22152116 is a KK 254 PC Board Connector from the 4455 series, designed for right-angle, end-to-end stackable PCB mounting. It features 11 circuits with tin-plated contacts and a 2.54mm pitch. The connector supports through-hole termination and is engineered for reliable signal transmission in compact electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle orientation for space-efficient board layout
• End-to-end stackable design for multi-level configurations
• Tin-plated contacts for corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Consumer electronics internal connections
• Industrial control panel wiring
• Computer peripheral interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact plating thickness and operating temperature range against the official datasheet before procurement. Confirm that the right-angle footprint matches the target PCB design requirements to ensure proper mechanical fit and electrical performance.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle, stackable header with 11 positions is required. Ensure the application voltage and current ratings align with the connector specifications. Consider the tin plating for general-purpose use rather than high-wear mating cycles.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the KK 254 series, known for its 2.54mm pitch and reliability in low-power signal applications. The 4455 series specifically offers stackable capabilities, allowing for vertical expansion of circuit boards without additional height constraints.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible replacements include other KK 254 series headers with identical pin counts and right-angle orientation. Verify that alternative parts maintain the same stackable feature and through-hole termination style for direct interchangeability.
