22162051

Headers, Receptacles, Female Sockets Overview

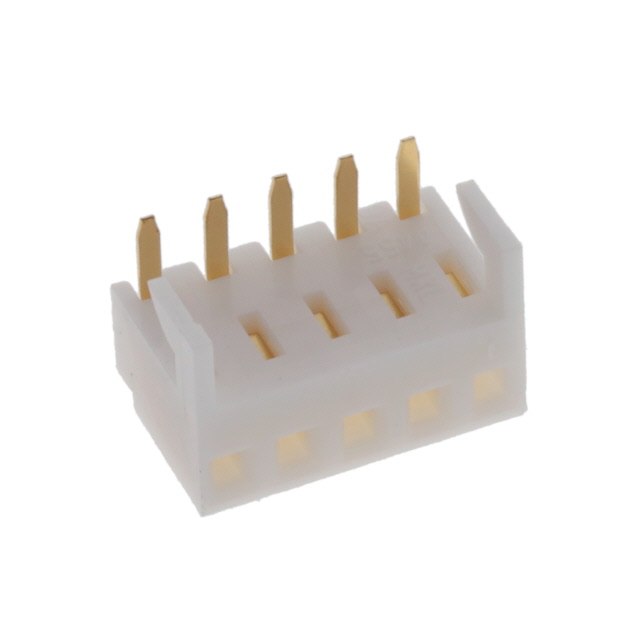

The Molex 22162051 is a KK 254 PC Board Connector receptacle featuring a right-angle, end-to-end stackable design. It provides 5 circuits with a 2.54mm (0.100 inch) pitch. The component utilizes through-hole mounting for secure board attachment and incorporates contacts plated with 0.51µm of gold to ensure reliable signal transmission.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle orientation facilitates compact vertical board integration
• End-to-end stackable architecture supports multi-level assembly configurations
• Gold plating on contact surfaces ensures durable electrical conductivity

Headers, Receptacles, Female Sockets Applications

• General-purpose printed circuit board interconnections
• Industrial control system wiring
• Consumer electronics internal connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific series designation and physical dimensions against official Molex datasheets prior to procurement. Confirm that the right-angle orientation and stackable features align with the mechanical constraints of the target PCB layout. Ensure compatibility with mating header components within the same connector family.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle connection is required for five-channel signals. The stackable design allows for efficient use of vertical space in dense assemblies. Verify that the through-hole termination method matches the manufacturing process capabilities of the production line.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the KK 254 series, a widely recognized line of wire-to-board and board-to-board connectors. The series is characterized by its standardized 2.54mm pitch, offering a balance between density and ease of handling. The 22162051 variant specifically addresses applications requiring angled insertion and modular stacking capabilities.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other KK 254 series receptacles with identical pin counts and right-angle orientations. Verify that alternative parts maintain the same stackable feature set and contact plating specifications to ensure functional equivalence.
