22162060

Headers, Receptacles, Female Sockets Overview

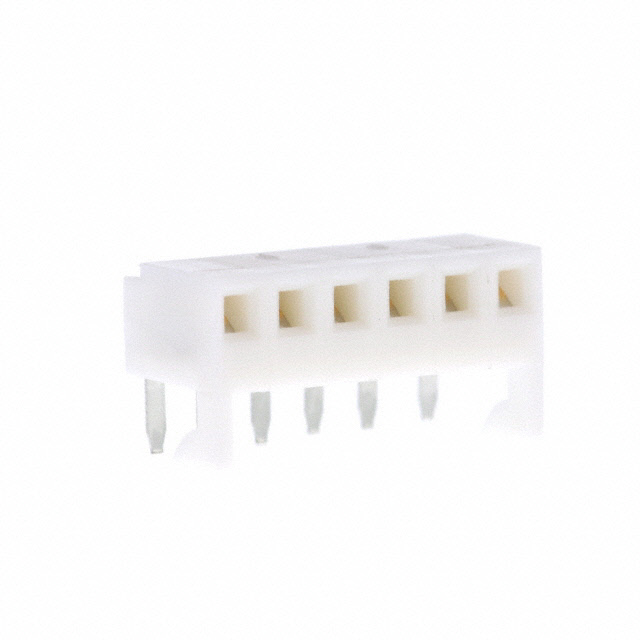

Molex part number 22162060 is a KK Interconnect System receptacle connector designed for board-to-board or cable applications. It features a single row with six positions and a 0.100-inch (2.54mm) mating pitch. The connector utilizes edge-mount installation with right-angle through-hole termination. Contact surfaces are gold-plated on the mating interface and tin-plated on the posts, ensuring reliable signal transmission. Rated for 250VAC and 2.5A, it operates within a temperature range of -40°C to 80°C. The housing is made of white polyamide (nylon) with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Edge-mount design facilitates precise PCB alignment and secure mechanical retention
• Push-pull locking mechanism ensures stable connection during operation
• Gold-plated contacts provide corrosion resistance and low contact impedance

Headers, Receptacles, Female Sockets Applications

• Automotive electronic systems
• Medical device instrumentation
• Telecommunications equipment
• General industrial control circuits

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Molex documentation to confirm exact plating thickness and packaging configuration. Ensure compatibility with mating header components regarding polarity and keying options. Confirm that the edge-mount orientation aligns with the target PCB layout constraints before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle, single-row receptacle is required for space-constrained board-edge installations. The 2.54mm pitch suits standard digital logic and power distribution needs. Consider the 2.5A current rating for load requirements and verify thermal management capabilities within the specified operating temperature range.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the KK Interconnect Solutions family, which provides versatile interconnect options for various industries. The series is known for its reliability in general-purpose applications, offering a balance between performance and cost-effectiveness for mass-produced electronic assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify pinout compatibility and mechanical dimensions if considering alternative manufacturers' equivalents.
