Headers, Receptacles, Female Sockets Overview

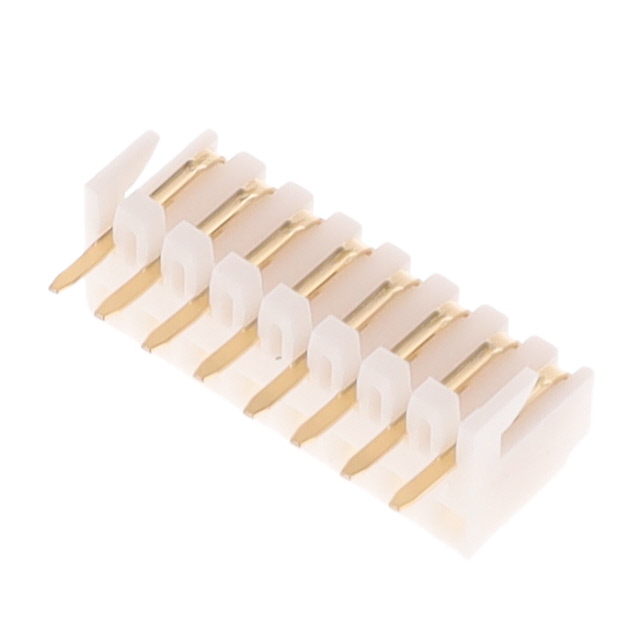

Molex part number 22-17-2082 is an 8-position receptacle connector from the Mini-Fit Jr. series. It features a 0.100 inch (2.54mm) pitch and utilizes gold-plated contacts for reliable signal transmission. The component is designed for through-hole termination, allowing secure mounting on printed circuit boards. This bottom-entry configuration ensures efficient cable routing in compact electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Provides secure electrical interconnection via through-hole PCB mounting
• Utilizes gold-plated contacts to ensure corrosion resistance and low contact resistance
• Features a shrouded design to prevent misalignment during mating

Headers, Receptacles, Female Sockets Applications

• Consumer electronics internal wiring
• Industrial control system interfaces
• Automotive auxiliary power distribution

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm terminal plating thickness and resin material grade. Ensure the selected variant matches the required current rating and temperature specifications for the target application environment before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a standard 2.54mm pitch header is required for board-to-wire connections. Consider the through-hole footprint constraints and verify that the mating housing aligns with the Mini-Fit Jr. series pin dimensions. Evaluate environmental exposure requirements to determine if additional sealing or higher-grade plating is necessary.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Mini-Fit Jr. family, a widely used line of wire-to-board connectors known for their versatility and reliability. The series supports various circuit counts and termination styles, making it a standard solution for general-purpose power and signal applications across multiple industries.

Headers, Receptacles, Female Sockets Replacement Considerations

Cross-reference with other manufacturers offering 2.54mm pitch shrouded headers. Verify mechanical compatibility including pin spacing, housing height, and locking mechanism design before substituting to ensure proper fit and function.
