22173052

Headers, Receptacles, Female Sockets Overview

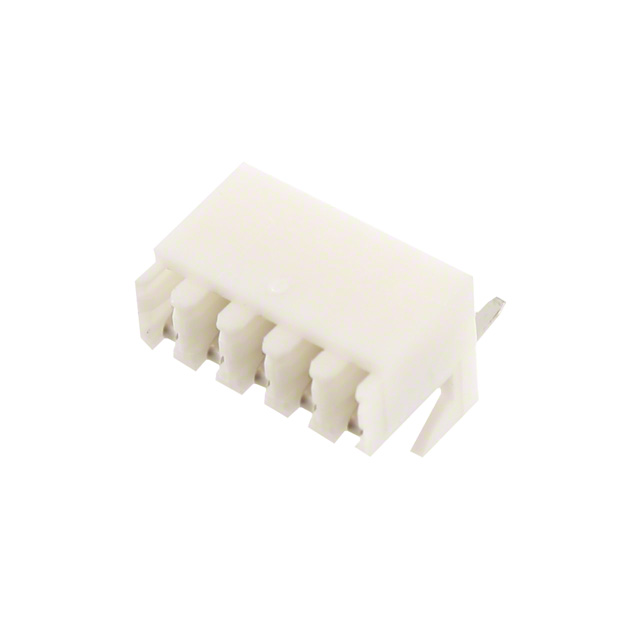

The Molex 22173052 is a KK 254 PC Board Connector receptacle featuring five circuits with a 0.100 inch (2.54 mm) pitch. It utilizes a bottom-entry design for through-hole PCB mounting and incorporates end-to-end stackability for multi-level assembly. The connector contacts are finished with selective gold plating, specifically 0.38 µm thick, to ensure reliable signal transmission and corrosion resistance in electronic interconnect applications.

Headers, Receptacles, Female Sockets Feature Summary

• Bottom-entry receptacle configuration designed for vertical PCB insertion
• End-to-end stackable housing structure enabling multi-level board stacking
• Selective gold contact plating for enhanced conductivity and durability

Headers, Receptacles, Female Sockets Applications

• Multi-layer printed circuit board assemblies requiring stacked connections
• Electronic devices utilizing standard 2.54 mm pitch interconnects
• Industrial control systems needing reliable through-hole signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm exact plating thickness and housing material variations. Ensure compatibility with mating header part numbers within the KK 254 series. Confirm that the bottom-entry orientation aligns with your PCB layout constraints before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, vertically mounted receptacle is required for 2.54 mm pitch applications. The end-to-end stackable feature makes it suitable for designs needing multiple connection levels without additional standoffs. Verify that the through-hole termination method matches your manufacturing process capabilities.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Molex KK 254 series, a widely used line of PCB connectors known for their versatility and reliability. The series offers various configurations including headers, receptacles, and terminal blocks, catering to diverse electronic interconnect needs across consumer electronics, industrial automation, and data communication sectors.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other KK 254 series receptacles from Molex with matching 5-position counts and bottom-entry orientations. Cross-reference mating headers to ensure mechanical and electrical compatibility. Generic 2.54 mm pitch connectors may fit mechanically but lack guaranteed performance equivalence.
