Headers, Receptacles, Female Sockets Overview

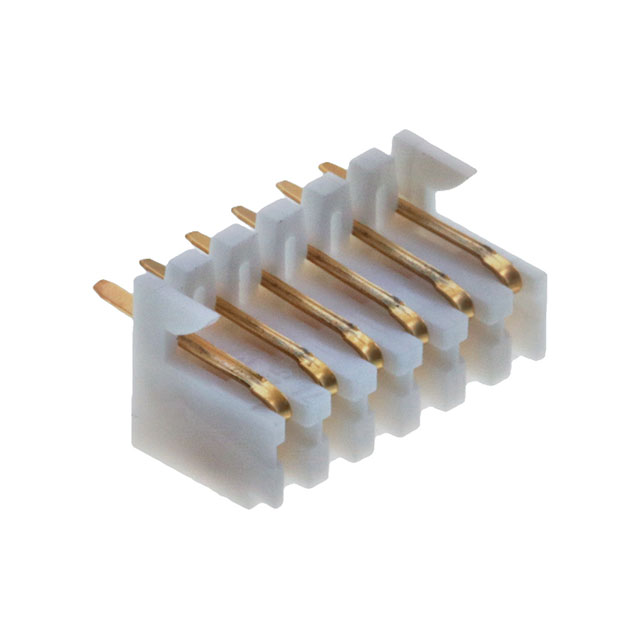

The Molex 0022182063 is a 6-position receptacle connector from the KK254 series, designed for board-to-board or cable applications. It features a 0.100 inch (2.54mm) pitch and utilizes through-hole termination with solder. The contacts are made of brass with gold plating, offering a mating thickness of 20.0µin (0.51µm) and a terminal thickness of 2.00µin (0.051µm). Rated for 250VAC and 2.5A, it operates within a temperature range of -40°C to 80°C. The white polyamide insulation ensures UL94 V-0 flammability rating, while push-pull locking secures the connection.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull locking mechanism provides secure retention between mating parts
• Gold-plated square brass contacts ensure reliable signal transmission
• White polyamide insulation meets UL94 V-0 safety standards
• Board hook feature aids in PCB alignment and stability

Headers, Receptacles, Female Sockets Applications

• Automotive electronic systems
• General purpose industrial equipment
• Medical device interconnections
• Telecommunications infrastructure

Headers, Receptacles, Female Sockets Procurement Notes

Verify the complete part number including any suffixes against official Molex documentation to confirm specific packaging or material variations. Ensure compatibility with mating plugs from the same KK254 family. Confirm RoHS compliance status via the manufacturer's certificate of compliance before integration into regulated assemblies.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 6-position through-hole receptacle with push-pull locking is required. The 2.54mm pitch suits standard PCB layouts. Consider the 2.5A current rating and 250VAC voltage limit for circuit design. The board hook feature is advantageous for mechanical stability during assembly and operation.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Molex KK254 series, a widely used line of rectangular connectors known for their versatility in various electronic applications. The series offers multiple configurations, including different pin counts and mounting styles, catering to diverse industry needs for reliable interconnect solutions.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult Molex official substitution guides for verified alternatives. Generic equivalents may not match the push-pull locking mechanism or board hook specifications.

Headers, Receptacles, Female Sockets FAQ

What is the contact shape of the 0022182063?

The contacts are square-shaped.

Does this connector include a board hook?

Yes, the connector features a board hook for additional stability.
