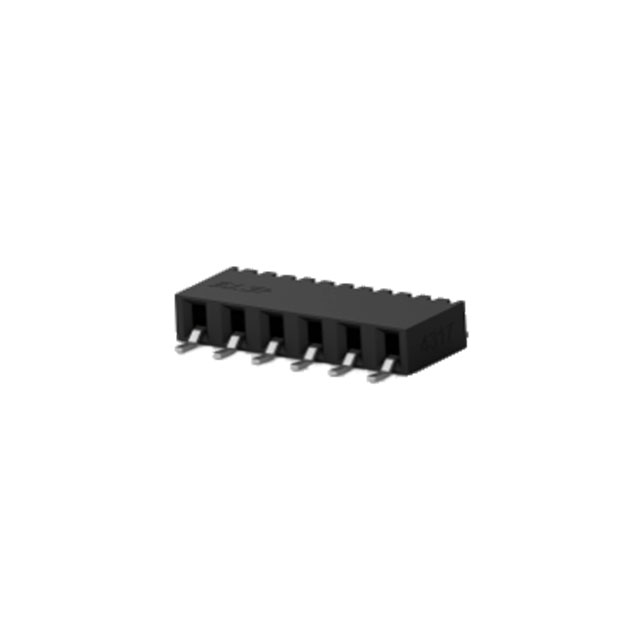

2307727-6

2307727-6 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 6P,2MM,B-B,REC,SRHZ,SMD,0.76AU. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2307727-6

• Description：6P,2MM,B-B,REC,SRHZ,SMD,0.76AU
• Series：AMPMODU
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.080" (2.03mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2A
• Voltage Rating：125V

Headers, Receptacles, Female Sockets datasheet and documents for 2307727-6
