2340164-1

Edgeboard Connectors Overview

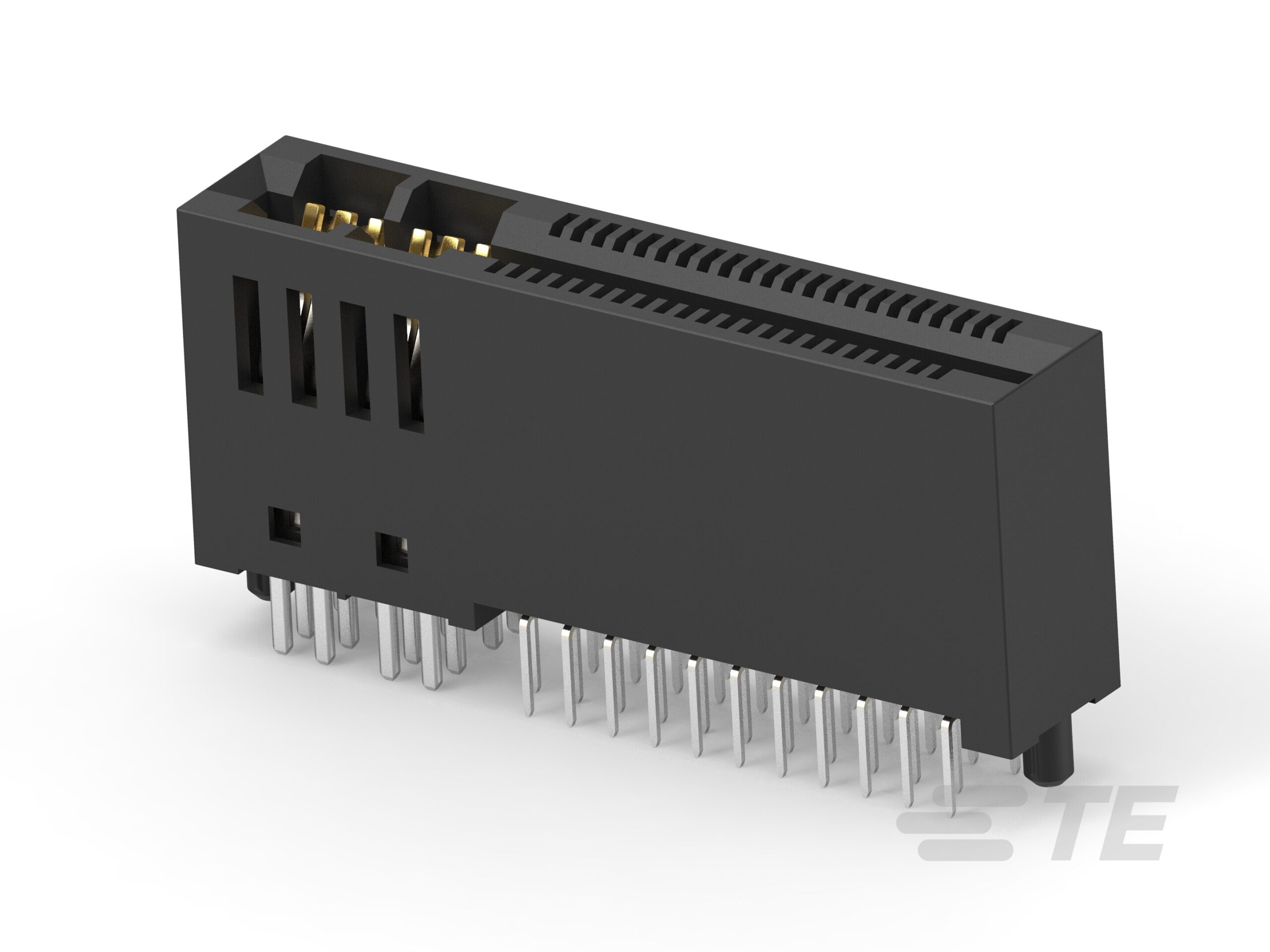

The TE Connectivity AMP Connectors part number 2340164-1 is a card edge power connector assembly designed for board-to-board applications. It features a dual-edge configuration with a total of 52 positions, comprising 44 signal and 8 dedicated power contacts. The connector utilizes gold-plated female terminals to ensure reliable conductivity and corrosion resistance. It supports a centerline spacing of 1 mm or 5.08 mm, accommodating both power and signal transmission requirements within a compact form factor suitable for high-density electronic systems.

Edgeboard Connectors Feature Summary

• Dual-edge design supporting simultaneous power and signal transmission
• Gold-plated female contacts for enhanced durability and conductivity
• Board guide feature ensuring precise alignment during mating

Edgeboard Connectors Applications

• High-density electronic system interconnects
• Board-to-board power distribution networks
• Signal transmission in compact industrial equipment

Edgeboard Connectors Procurement Notes

Verify the specific centerline requirement (1 mm or 5.08 mm) against the target PCB layout before ordering. Confirm that the mating board utilizes compatible dual-edge card connectors. Ensure the application environment does not exceed the thermal limits of the thermoplastic glass-filled insulation material used in this assembly.

Edgeboard Connectors Selection Notes

Select this component when a robust solution for combined power and signal routing is required in space-constrained designs. The dual-edge architecture allows for higher pin counts compared to single-edge alternatives. Consider the mechanical stability provided by the board guide feature if vibration resistance is a critical design parameter for the final assembly.

Edgeboard Connectors Part Context

This component belongs to the AMP Connectors product line from TE Connectivity, known for providing reliable interconnection solutions. The 2340164-1 specifically addresses the need for high-reliability connections in demanding environments where both electrical performance and mechanical integrity are paramount for long-term system operation.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing tooling and mating components before attempting any alternative sourcing.
