2369833-2

Edgeboard Connectors Overview

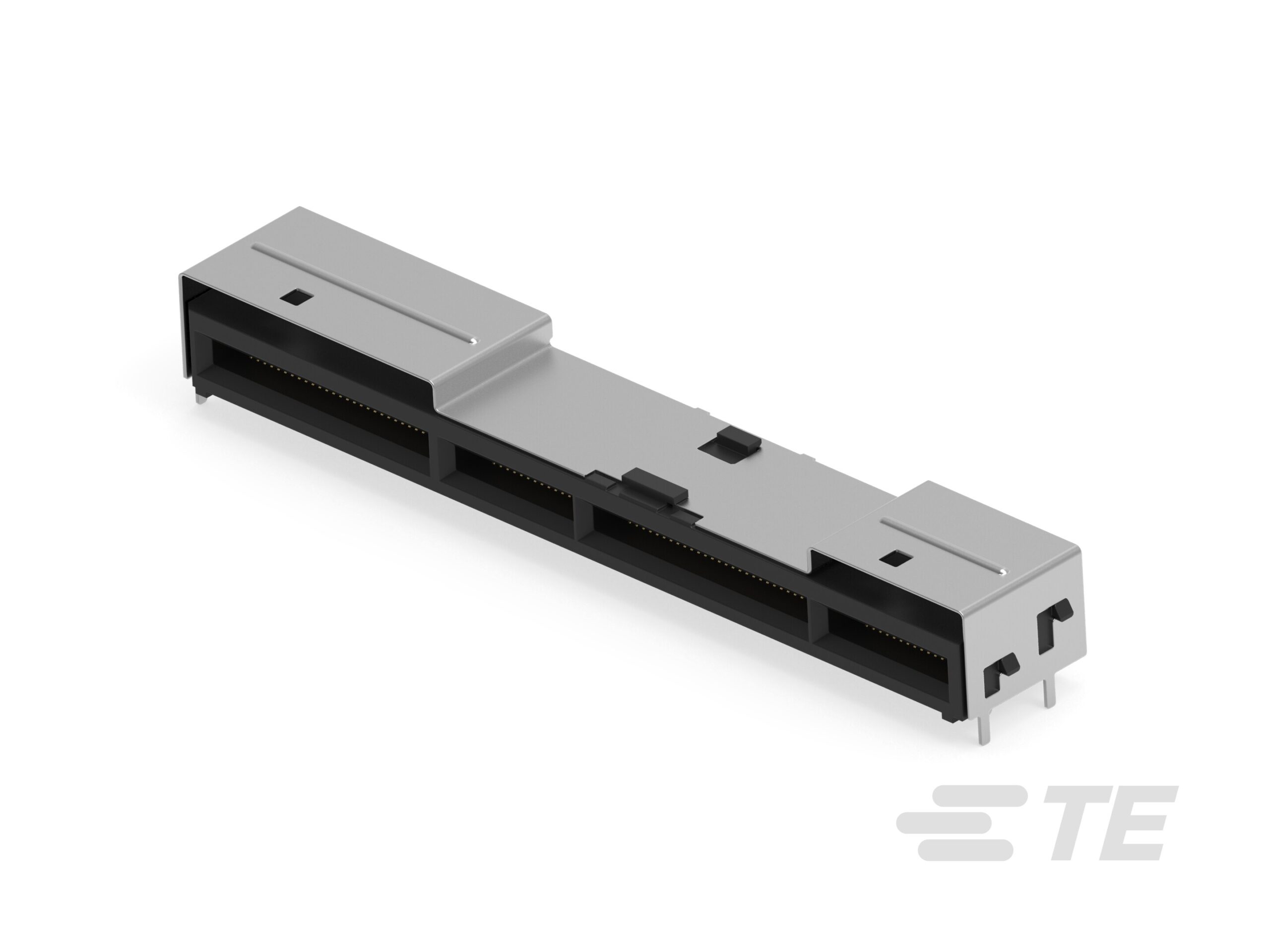

TE Connectivity AMP Connectors part number 2369833-2 is a dual-edge receptacle assembly designed for internal I/O applications. It features a silver-plated contact finish and operates within a temperature range of -55°C to 85°C. The connector utilizes a 0.024-inch (0.60mm) pitch and accommodates 168 positions across two rows. Packaged in tape and reel format, this right-angle cable plug assembly supports surface mount installation for high-speed data transmission.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates circuit cards for computing and telecommunications
• Right-angle configuration facilitates compact cable-to-cable connections
• Surface mount technology enables automated assembly processes

Edgeboard Connectors Applications

• Internal I/O connections in computing systems
• Telecommunications equipment interconnects
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official TE Connectivity documentation to confirm plating thickness and material specifications. Ensure that the selected variant matches the required operating temperature range and mechanical retention standards for the target application environment.

Edgeboard Connectors Selection Notes

Select this component when a high-density, right-angle interface is required for internal board-to-board or cable connections. Consider the 168-position capacity and dual-edge compatibility when designing for high-speed signal integrity in constrained spaces.

Edgeboard Connectors Part Context

This component belongs to the Silver 2.0 series of connectors from TE Connectivity. This series is engineered to support high-speed data transmission requirements in modern electronic systems, providing reliable performance in demanding industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Cross-reference pin counts, pitch dimensions, and mounting styles to ensure mechanical and electrical compatibility with existing designs.
