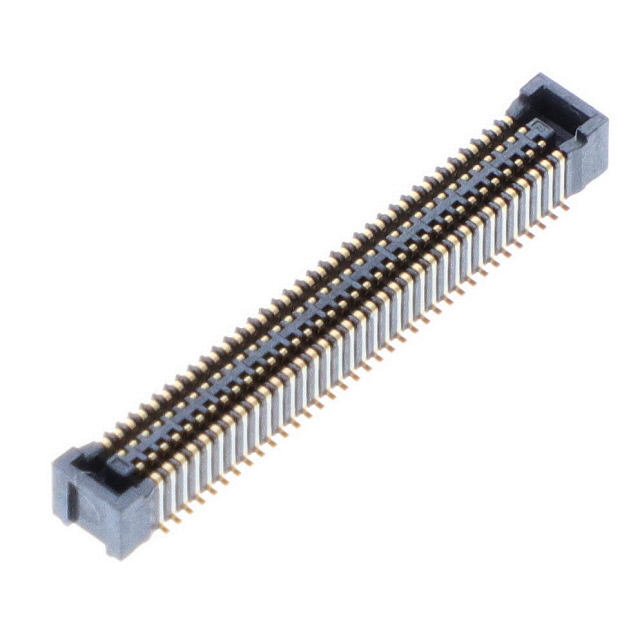

Arrays, Edge Type, Mezzanine (Board To Board) 245804070030829+ product image

245804070030829+

$1.28

Description：RECPT - 0.4MM PITCH - 70 POS - 2
Series：Super Microleaf 5804, Kyocera
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5e02aae4f895 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: KYOCERA AVX

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

245804070030829+ is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is RECPT - 0.4MM PITCH - 70 POS - 2. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 245804070030829+

Description：RECPT - 0.4MM PITCH - 70 POS - 2
Series：Super Microleaf 5804, Kyocera
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Center Strip Contacts
Number of Positions：70
Pitch：0.016" (0.40mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：-
Mated Stacking Heights：2mm
Height Above Board：0.077" (1.95mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 245804070030829+

245804070030829+

Explore related parts through Rectangular Connectors, Connectors, Interconnects, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
