2520-6003UB

Headers, Male Pins Overview

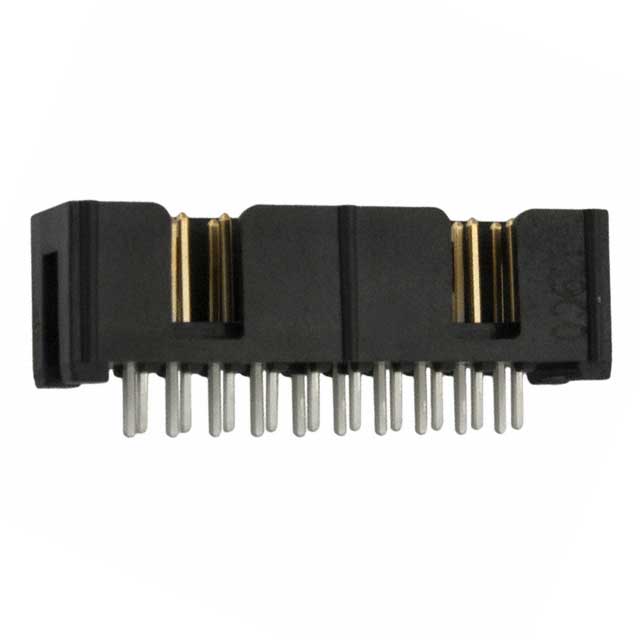

The 3M 2520-6003UB is a vertical header connector from the 2500 series, featuring 20 positions with a 0.100-inch (2.54mm) pitch. It utilizes through-hole termination and accepts square male pins. The unit includes a four-wall shielded shroud for protection and employs a push-pull locking mechanism. Rated current is 1.75A, with an operating temperature range of -55°C to 105°C. Insulation is made of glass-filled PCT, rated UL94 V-0.

Headers, Male Pins Feature Summary

• Vertical board-to-board or cable mounting configuration
• Four-wall shielded shroud design for environmental protection
• Push-pull locking style for secure mating
• Keyway feature for orientation alignment

Headers, Male Pins Applications

• Industrial control panel interconnections
• Consumer electronics assembly
• Telecommunications equipment headers

Headers, Male Pins Procurement Notes

Verify component status as this specific part number may be discontinued. Confirm availability of alternative versions within the 2500 series if production continuity is required. Ensure compatibility with mating female sockets regarding pin length and shroud dimensions before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this model when a vertical, shielded header with push-pull retention is necessary. Verify that the 20-position count matches the circuit requirements. Ensure the PCB layout accommodates the through-hole solder tail dimensions and the shroud height constraints for the enclosure design.

Headers, Male Pins Part Context

This component belongs to the 3M 2500 series of IDC wiremount connectors. The series offers various position counts and configurations. The 2520 variant specifically denotes the 20-position version within this standardized rectangular connector family designed for reliable electronic interconnects.
