25QHTF32-186.666-PD

Oscillators Overview

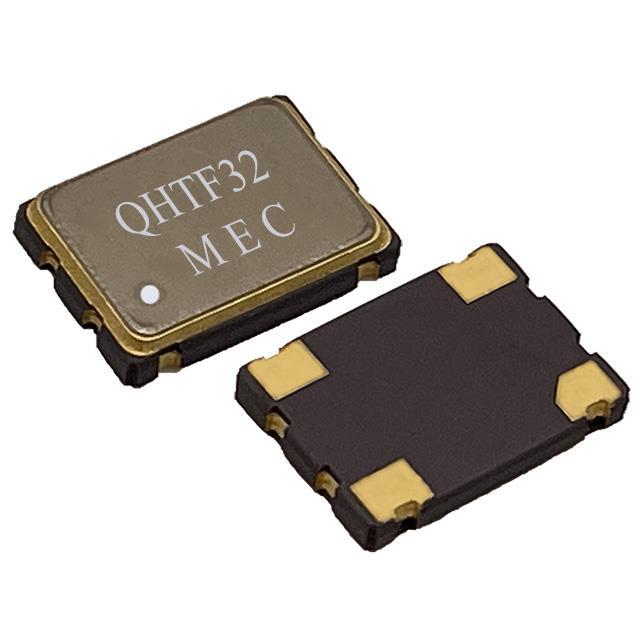

The 25QHTF32-186.666-PD is a standard crystal oscillator manufactured by Mercury Electronics Ind. Co., Ltd. It operates at a frequency of 186.666 MHz with an LVCMOS output logic level. The device requires a supply voltage of 2.5V and features a Standby (Power Down) function for energy management. It is housed in a compact 4-SMD, No Lead package with dimensions of 3.2x2.5mm.

Oscillators Feature Summary

• Supports Standby (Power Down) mode for power management
• Utilizes LVCMOS output logic interface
• Housed in a 4-SMD, No Lead surface-mount package

Oscillators Applications

• General clock signal generation
• Digital system timing reference
• Embedded electronics applications

Oscillators Procurement Notes

Verify the specific frequency tolerance and operating temperature range against the official datasheet before integration. Confirm that the 2.5V supply voltage aligns with the target circuit design. Ensure the 4-SMD, No Lead footprint matches the PCB layout requirements to guarantee proper mechanical and electrical connection during assembly.

Oscillators Selection Notes

Select this component when a precise 186.666 MHz clock source is required within a low-profile 3.2x2.5mm form factor. The LVCMOS output is suitable for standard digital logic interfaces. Consider the standby feature if power efficiency during idle states is a design priority. Validate compatibility with the 2.5V power rail constraints of the host system.

Oscillators Part Context

This part belongs to the 25QHTF32 series of standard crystal oscillators from Mercury Electronics. The series offers various frequencies with consistent LVCMOS outputs and standby capabilities. The 25QHTF32-186.666-PD specifically provides the 186.666 MHz variant in the common 3.2x2.5mm SMD package, serving as a compact timing solution for modern electronic devices.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult the manufacturer directly or verify cross-reference data through official distributor channels before attempting substitution.
