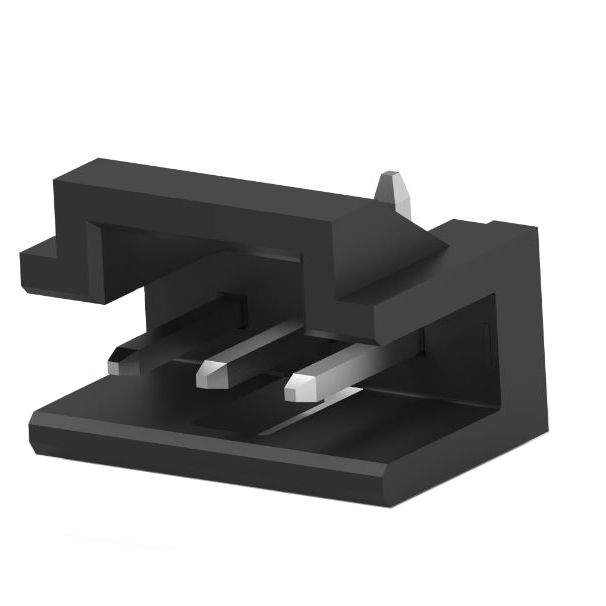

2823199-3

2823199-3 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is 3P,2MM,PL,SRVT,SMD,SN,TR W/CAP. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 2823199-3

• Description：3P,2MM,PL,SRVT,SMD,SN,TR W/CAP
• Series：AMPMODU 2MM
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：3
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 2 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Length - Mating：0.157" (4.00mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.217" (5.51mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：118.1µin (3.00µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Thermoplastic
• Features：Pick and Place
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：2A
• Voltage Rating：125VAC/DC

Headers, Male Pins datasheet and documents for 2823199-3
