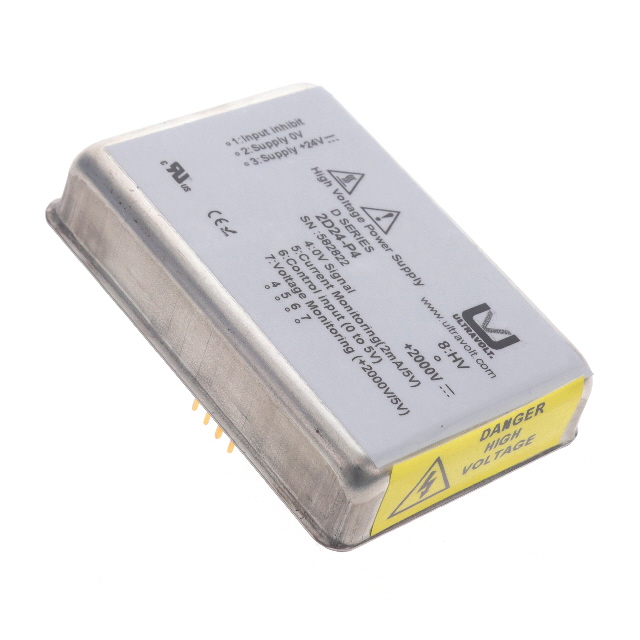

2D24-P4

2D24-P4 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ULTRAVOLT / Advanced Energy. Its product description is D-SERIES DC TO HVDC CONVERTER, S. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 2D24-P4

• Description：D-SERIES DC TO HVDC CONVERTER, S
• Series：UltraVolt® D
• Mfr：ULTRAVOLT / Advanced Energy
• Package：Bulk
• Type：High Voltage - Non-Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：22V
• Voltage - Input (Max)：26V
• Voltage - Output 1：0 ~ 2000V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2mA
• Power (Watts)：4 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-10°C ~ 65°C
• Efficiency：-
• Mounting Type：Through Hole
• Package / Case：8-DIP Module
• Size / Dimension：2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 2D24-P4
