2SH-C-05-TR

Headers, Male Pins Overview

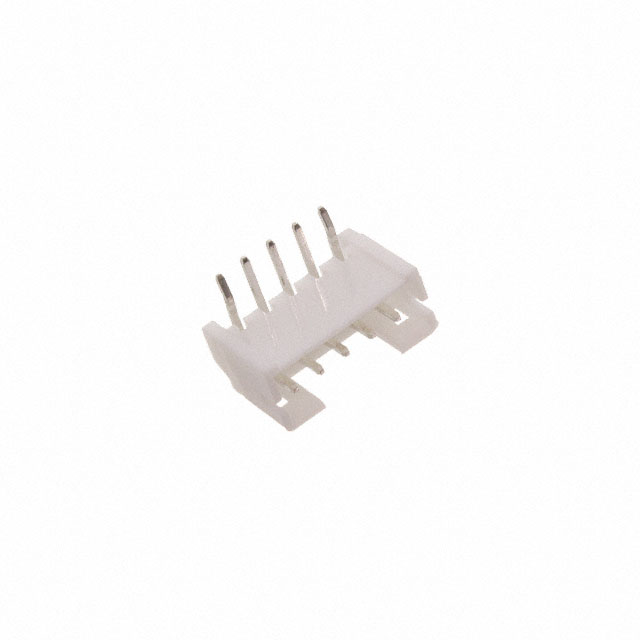

The Adam Tech 2SH-C-05-TR is a rectangular connector header designed for through-hole mounting at a right angle. It features five male pin contacts with a 2.00mm (0.079 inch) pitch. The housing utilizes a four-wall shrouded design to ensure proper alignment and protection. Contacts are made of brass with tin plating on both the mating interface and the tail for reliable soldering. This component operates within a temperature range of -25°C to +85°C and supports a rated voltage of 100VAC.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration for space-efficient PCB layouts
• Four-wall shrouded housing design ensures precise pin alignment during assembly
• Tin-plated brass contacts provide corrosion resistance and secure solder joint formation

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system board-to-board connections
• Consumer appliance internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and pitch specifications before integration. Confirm that the through-hole right-angle form factor aligns with the mechanical constraints of the target printed circuit board design. Ensure compatibility with standard lead-free soldering processes if RoHS compliance is required for the final assembly.

Headers, Male Pins Selection Notes

Select this component when a rigid, right-angle connection is necessary for low-voltage signal or power distribution. The 2.00mm pitch offers a balance between density and ease of manual handling. Consider the shrouded design if misalignment prevention is critical compared to open-frame alternatives. Evaluate thermal requirements against the -25°C to +85°C operational limit.

Headers, Male Pins Part Context

This header belongs to the 2SH series from Adam Tech, which focuses on compact rectangular connectors. The series typically includes various configurations such as straight headers, wire housings, and shunts. The 2SH-C variant specifically denotes the right-angle through-hole style, distinguishing it from surface mount or straight-pin options within the same product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include the 2SH-H-05-TR, which shares identical electrical characteristics and pitch but differs in mounting orientation. Verify that any alternative maintains the same 5-position count and shrouded housing structure to ensure mechanical interchangeability without redesigning the PCB footprint.
