3-1367703-2

Edgeboard Connectors Overview

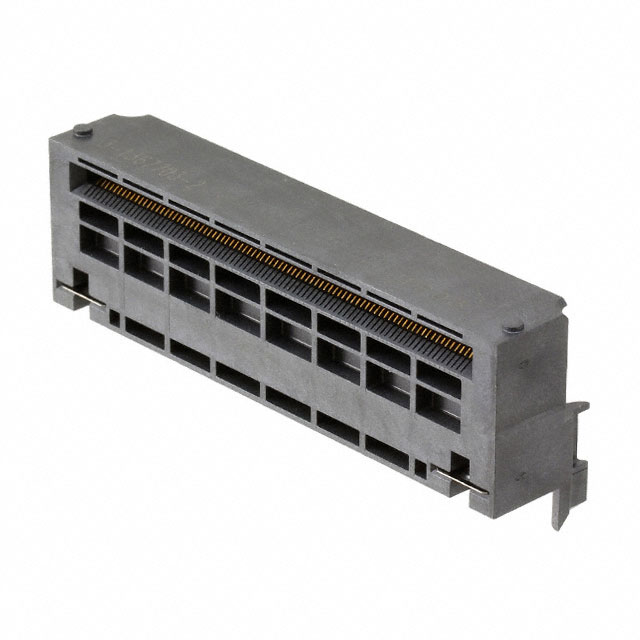

The TE Connectivity AMP Connectors part number 3-1367703-2 is a 170-position female card edge connector belonging to the AMC B+ series. It features a 0.029-inch (0.75mm) pitch and utilizes gold or gold-palladium contact plating for reliable signal transmission. The housing is black, designed specifically for Advanced Mezzanine Card and MicroTCA applications. This component serves as a high-density interconnect solution within its designated product family.

Edgeboard Connectors Feature Summary

• Designed for Advanced Mezzanine Card B+ and MicroTCA system architectures
• Female card edge connector configuration with 170 positions
• Gold or gold-palladium contact plating options available

Edgeboard Connectors Applications

• Advanced Mezzanine Card (AMC) interconnects
• MicroTCA chassis backplane connections
• High-density mezzanine card systems

Edgeboard Connectors Procurement Notes

Verify the specific contact plating variant required for your application, as the datasheet indicates availability in either gold or gold-palladium finishes. Confirm that the 170-position count aligns with your board design requirements. Ensure compatibility with the AMC B+ standard before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when designing for AMC B+ or MicroTCA form factors requiring a 170-position female interface. Consider the 0.029-inch pitch constraints during PCB layout. Evaluate the need for gold versus gold-palladium contacts based on environmental conditions and mating cycle requirements specified in the official documentation.

Edgeboard Connectors Part Context

This connector belongs to the AMC B+ series by TE Connectivity AMP Connectors. It is engineered to support high-speed data transfer in compact mezzanine card environments. The 170-position count provides substantial I/O density within the standardized footprint defined by the AMC B+ specification.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for direct cross-reference part numbers. Verify mechanical dimensions and electrical specifications against any potential substitute components to ensure full compatibility with existing AMC B+ designs.
