Edgeboard Connectors Overview

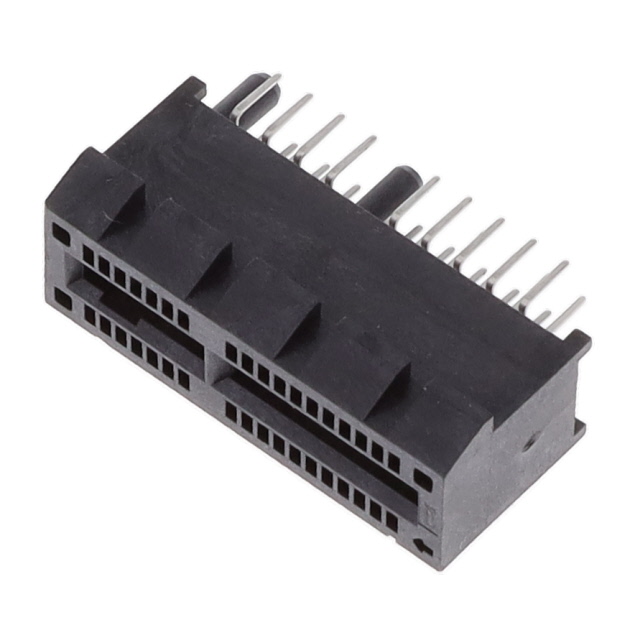

The TE Connectivity AMP Connectors part number 3-2362375-1 is a PCI Express Gen4 compliant card edge connector designed for high-speed data transmission applications. This component features a dual-side contact configuration with 36 positions, accommodating the signal requirements of modern expansion cards. The connector utilizes a gold flash plated phosphor bronze contact material to ensure reliable electrical conductivity and corrosion resistance over repeated mating cycles. It is engineered for through-hole mounting with a straight body orientation, providing a secure mechanical interface on printed circuit boards. The design supports a tail length of 3.1mm, facilitating robust solder joint formation for long-term durability in demanding electronic environments.

Edgeboard Connectors Feature Summary

• PCI Express Gen4 standard compliance for high-bandwidth signal integrity
• Dual-side contact configuration with 36 positions for comprehensive connectivity
• Gold flash plated phosphor bronze contacts ensuring low contact resistance
• Through-hole mounting with straight orientation for stable PCB integration

Edgeboard Connectors Applications

• High-performance computing server expansion slots
• Graphics processing unit (GPU) interconnects
• Network interface card (NIC) connections
• Accelerator card interfaces in industrial systems

Edgeboard Connectors Procurement Notes

Verify that the specific order matches the 3-2362375-1 designation to ensure Gen4 compatibility and correct pin count. Confirm that the receiving facility has appropriate handling procedures for sensitive card edge connectors. Ensure storage conditions prevent physical damage to the delicate contact fingers prior to installation. Cross-reference the supplier documentation to confirm RoHS compliance status if required by project specifications. Validate that the procurement channel provides genuine components from authorized distribution networks to avoid counterfeit risks.

Edgeboard Connectors Selection Notes

Select this component when designing systems requiring PCI Express Gen4 performance levels with a 36-position interface. The dual-side contact arrangement is suitable for applications needing maximum signal routing density within a standard form factor. Consider the through-hole termination method if board rigidity and vibration resistance are critical priorities. Evaluate the straight body orientation against available panel space and mating cable constraints. Ensure the target application environment does not exceed the thermal limits associated with the connector materials.

Edgeboard Connectors Part Context

This connector belongs to the broader family of TE Connectivity AMP Connectors card edge solutions, specifically tailored for PCIe standards. It serves as a critical interface between the motherboard and peripheral expansion modules. The 36-position layout aligns with common industry form factors used in data center and workstation architectures. Its construction emphasizes signal integrity preservation at higher frequencies characteristic of Gen4 technology.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 36-position count, dual-side contact type, and Gen4 specification. Verify that any alternative part maintains identical through-hole termination and straight orientation. Check for equivalent gold plating thickness and phosphor bronze material composition to ensure comparable electrical performance.

Edgeboard Connectors FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with a gold flash plating on the mating side.

Does this connector support PCI Express Gen4 signals?

Yes, the component is designed to be compliant with PCI Express Gen4 standards.

What is the mounting style for this part?

It utilizes a through-hole mounting method with a straight body orientation.
