302-006-621-201

Edgeboard Connectors Overview

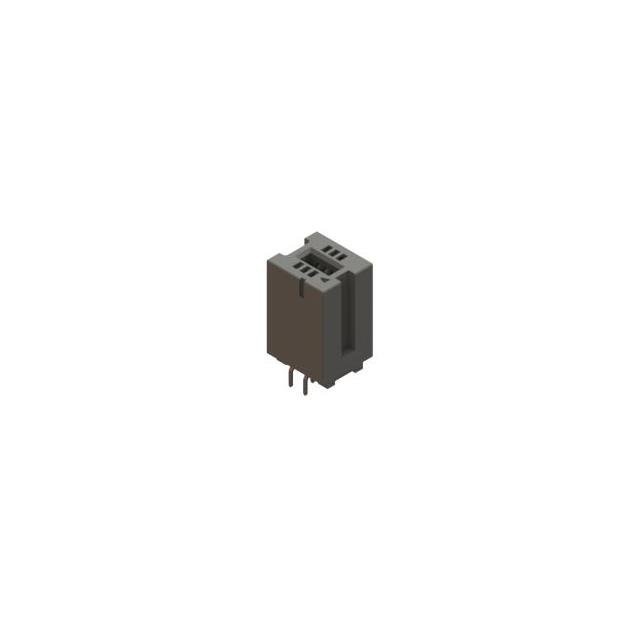

The EDAC Inc. 302-006-621-201 is a standard card edge connector from the 302 series, designed for dual-edge PCB applications. It features six female contacts with gold flash plating and a 0.05-inch (1.27mm) spacing. The housing utilizes black thermoplastic material without mounting lugs. This component supports vertical termination via solder tails, ensuring reliable electrical connections for non-specified dual-edge cards within industrial and commercial electronic systems.

Edgeboard Connectors Feature Summary

• Dual-row configuration with six gold-plated female contacts for secure signal transmission
• Vertical termination design utilizing extender board tails for through-hole soldering
• Compact housing structure constructed from black thermoplastic material without integrated mounting lugs

Edgeboard Connectors Applications

• Industrial control system interconnects
• Commercial electronic module connections
• General-purpose circuit board edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific contact finish variant against official documentation, as suffix codes may indicate different plating specifications such as tin-nickel barriers. Confirm mechanical compatibility with target PCB stack-up dimensions. Ensure sourcing channels provide authentic manufacturer components to guarantee performance reliability in critical electronic assemblies.

Edgeboard Connectors Selection Notes

Select this connector when a low-profile, dual-edge interface with minimal footprint is required. The absence of mounting lugs makes it suitable for space-constrained designs where alternative securing methods are employed. Verify that the target application does not require higher pin counts or different spacing standards provided by other series members.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series, which specializes in high-density card edge connectors. The series offers various pin configurations while maintaining consistent 0.05-inch spacing. The 302-006-621-201 represents a specific low-pin-count variant optimized for compact dual-edge applications requiring robust gold-plated contact integrity.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the 302 series for alternative pin counts. Verify identical spacing and termination style before substituting. No direct public substitute part numbers are confirmed for this specific configuration.
