302-008-656-201

Edgeboard Connectors Overview

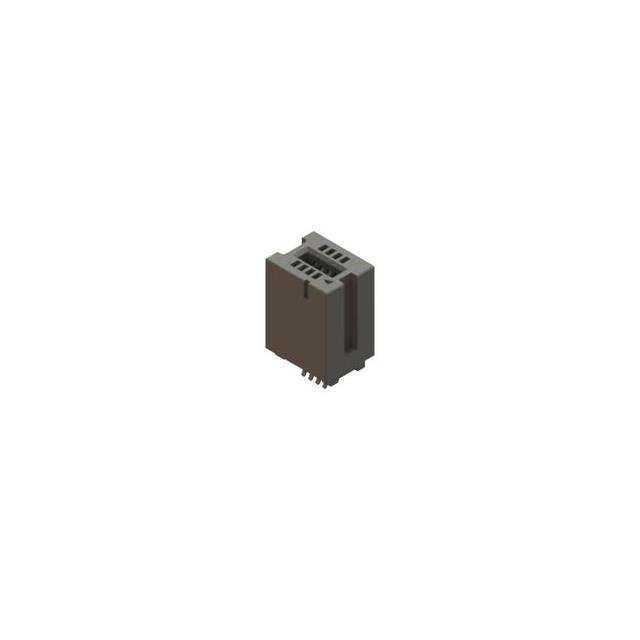

The EDAC Inc. 302-008-656-201 is a standard card edge connector from the 302 Series, designed for dual-edge board applications. It features 8 positions with a female contact configuration and a 0.050 inch (1.27mm) pitch. The connector utilizes gold-plated contacts on a copper alloy substrate, housed in black polyamide insulation. It supports PCB thicknesses ranging from 0.051 to 0.071 inches and operates within a temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold flash plating ensures reliable signal transmission
• Solder termination facilitates permanent PCB mounting

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact spacing and housing material. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, dual-edge connector with fine 1.27mm pitch is required. Consider the operating temperature range and mechanical retention needs. Evaluate alternative series if higher current ratings or different mounting styles are necessary for the specific application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 302 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting options, providing flexibility for diverse electronic assembly requirements while maintaining consistent electrical performance characteristics across the product line.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Generic equivalents may not match critical interface dimensions or material specifications.
