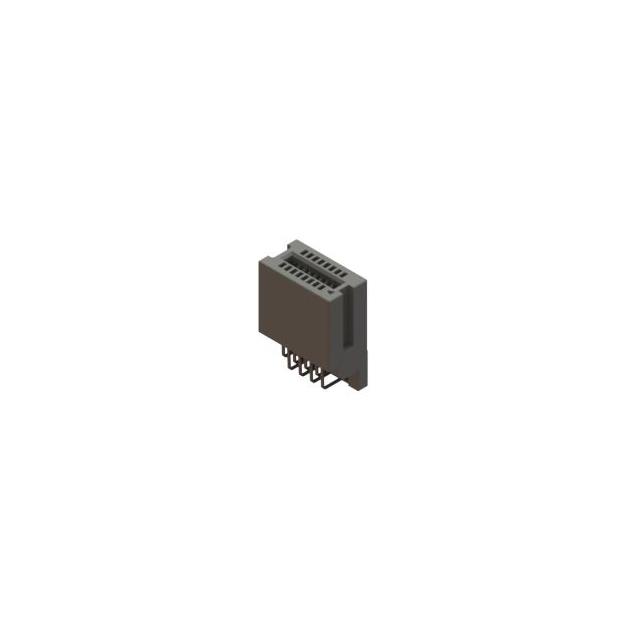

302-016-358-201

302-016-358-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is 302 SERIES (.05" (1.27MM) CONTAC. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 302-016-358-201

• Description：302 SERIES (.05" (1.27MM) CONTAC
• Series：302
• Mfr：EDAC Inc.
• Package：Tube
• Card Type：Non Specified - Dual Edge
• Gender：Female
• Number of Positions/Bay/Row：8
• Number of Positions：16
• Card Thickness：0.051" ~ 0.071" (1.30mm ~ 1.80mm)
• Number of Rows：2
• Pitch：0.050" (1.27mm)
• Read Out：Dual
• Features：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Contact Finish Thickness：15.0µin (0.38µm)
• Contact Type：Cantilever
• Color：Black
• Flange Feature：-
• Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 302-016-358-201
