305-012-500-202

Edgeboard Connectors Overview

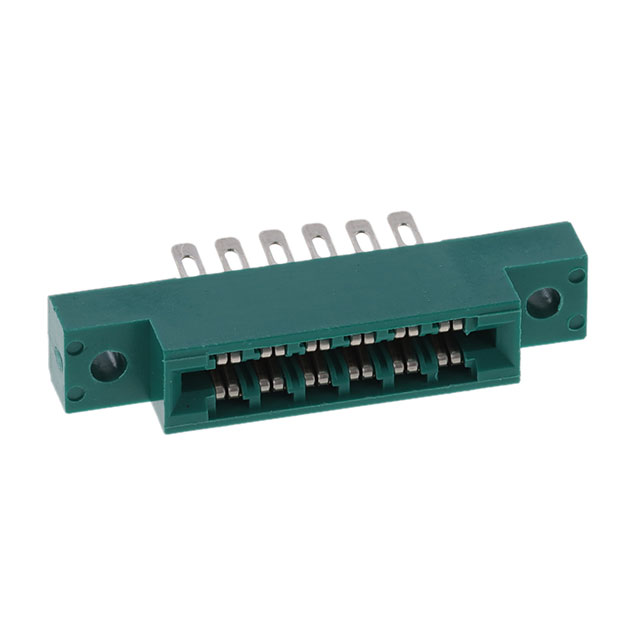

The EDAC Inc. 305-012-500-202 is a standard card edge connector from the 305 series, designed for panel mounting in a vertical orientation. It features a dual female configuration with 12 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated phosphor bronze contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). This component serves as a header interface for reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for board-to-board or backplane interconnection
• Gold-plated phosphor bronze contacts ensure durable electrical performance
• Vertical panel mount style provides secure structural integration

Edgeboard Connectors Applications

• Electronic equipment requiring standardized card edge interfaces
• Industrial control systems utilizing modular board architectures
• Communication hardware infrastructure components

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compatibility with system requirements. Ensure that the ordering suffix matches the desired termination and plating specifications. Cross-reference technical drawings for mechanical fitment before procurement. Confirm current product status and availability through authorized distribution channels to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row, 12-position interface with 3.96 mm pitch is required. Verify that the target PCB thickness aligns with the 1.57 mm specification. Consider the vertical panel mount style for space-constrained applications. Evaluate the gold plating option for corrosion resistance and contact reliability in demanding environments compared to alternative finishes.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic applications. The 305-012-500-202 specifically addresses needs for compact, high-reliability connections in modular systems. Its design emphasizes mechanical stability and consistent electrical performance across industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify pin count, pitch, and mounting style match before considering substitutes.
