305-012-500-512

Edgeboard Connectors Overview

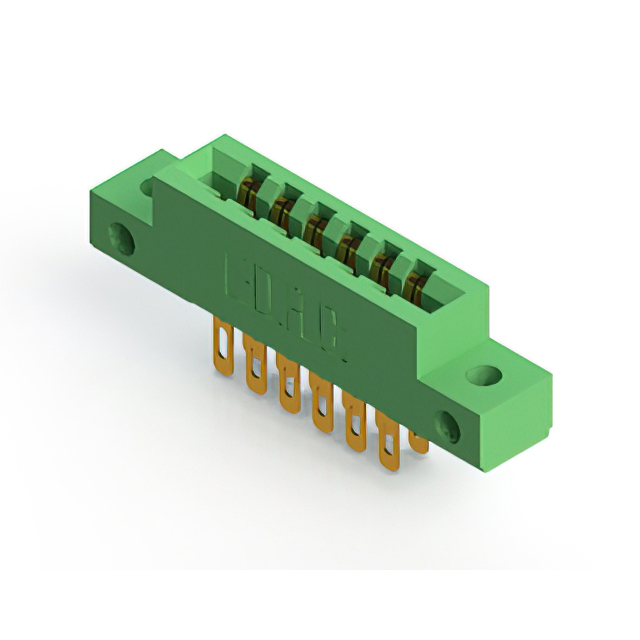

The EDAC Inc. 305-012-500-512 is a standard card edge connector header featuring 12 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) contact pitch with a 3.56 mm (0.140 inch) row spacing. Designed for panel mount installation at a vertical angle, the unit accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual row header design accommodating 12 positions
• Vertical panel mount installation style
• Gold-plated copper alloy contacts for conductivity
• Compatible with 0.062 inch nominal PCB thickness

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Communication equipment interface modules
• Automotive electronics assemblies
• Medical device internal circuitry integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination type and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability status and lead times. Request updated datasheets directly from the manufacturer to validate environmental ratings and operating temperature ranges.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required for vertical panel mounting. The 12-position count suits applications needing moderate I/O density within a compact footprint. Verify that the mating card edge meets the 0.062 inch thickness specification. Consider the gold plating requirement for corrosion resistance in demanding environments compared to tin-plated alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent 3.96 mm spacing. The 305-012-500-512 variant specifically addresses needs for low-profile insulator bodies and reliable vertical interconnects in space-constrained electronic enclosures.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 12-position dual row layout, 3.96 mm pitch, and 1.57 mm PCB thickness tolerance. Verify identical panel mount vertical orientation and gold-plated contact materials. Consult EDAC technical support for cross-reference lists ensuring equivalent electrical ratings and mechanical dimensions.
