305-012-520-512

Edgeboard Connectors Overview

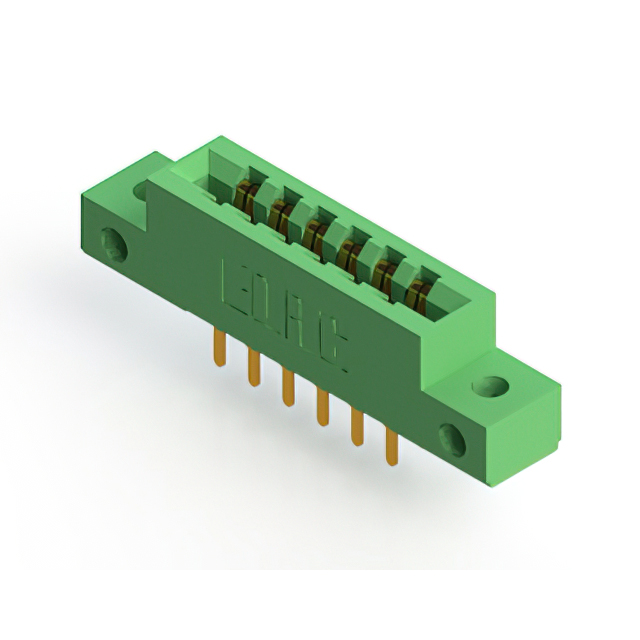

The EDAC Inc. 305-012-520-512 is a standard card edge connector from the 305 series, designed for vertical panel mount applications. It features a dual female configuration with 12 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts terminated via solder pins. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and offers a continuous current rating of 5 A.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable board insertion
• Gold-plated copper alloy contacts ensure corrosion resistance
• Vertical panel mount style with solder pin termination
• Accepts between-contact and in-contact polarizing keys

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulation color specifications. Ensure the target PCB thickness aligns with the 0.062-inch nominal requirement for proper retention. Confirm RoHS compliance status through official manufacturer documentation prior to integration into regulated assemblies.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 12-position interface is required for vertical mounting. The 0.156-inch pitch suits general-purpose digital and low-power analog signals. Consider the 5A current rating for power distribution needs within the connector limits. Verify compatibility with existing polarizing keying strategies for assembly alignment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, a line of standard card edge connectors known for durability. The series supports various position counts and row configurations. These connectors are engineered for high-cycle mating environments, providing stable electrical connections in demanding industrial and commercial settings.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 12-position count, 0.156-inch pitch, and dual female configuration. Verify that alternative components support the same 0.062-inch board thickness and vertical panel mount orientation. Cross-reference contact material and plating specifications to maintain electrical performance standards.
