305-012-555-208

Edgeboard Connectors Overview

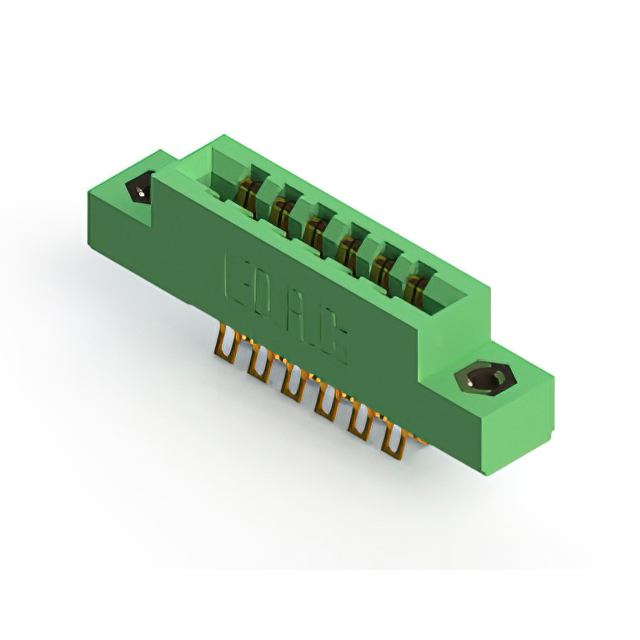

The EDAC Inc. 305-012-555-208 is a standard card edge connector from the 305 series, designed for dual-edge female connections. It features 12 positions with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). It utilizes gold-plated copper alloy contacts and solder lug termination. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row configuration with low-profile insulator body
• Gold-plated copper alloy contacts for reliable signal transmission
• Panel mount vertical installation style
• Accepts standard 1.57 mm thick PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connectivity
• Telecommunications equipment interfaces
• Test and measurement instrumentation modules
• Automotive electronics sub-systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC ordering guide to ensure correct termination type and mounting variations. Confirm RoHS compliance status directly with the manufacturer or authorized distributors, as regulatory requirements may vary by region and production batch. Cross-reference the part number with the latest datasheet to validate electrical ratings and mechanical dimensions before integration into design specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 12 positions and 3.96 mm pitch is required. Ensure the target PCB thickness matches the 1.57 mm specification for proper engagement. Consider the panel mount vertical orientation for space-constrained enclosures. Verify that the 5 A current rating and operating temperature range meet the application's environmental and electrical demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options, maintaining consistent 3.96 mm pitch and 3.56 mm row spacing across models. The 305 series is designed for high-reliability applications in industrial and commercial environments, providing stable connections for dual-edge cards.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 305-012-556-204 and 305-012-556-278, which share similar mechanical and electrical characteristics but may differ in termination style or packaging. Always verify pinout compatibility and physical dimensions before substitution.
