305-012-556-501

Edgeboard Connectors Overview

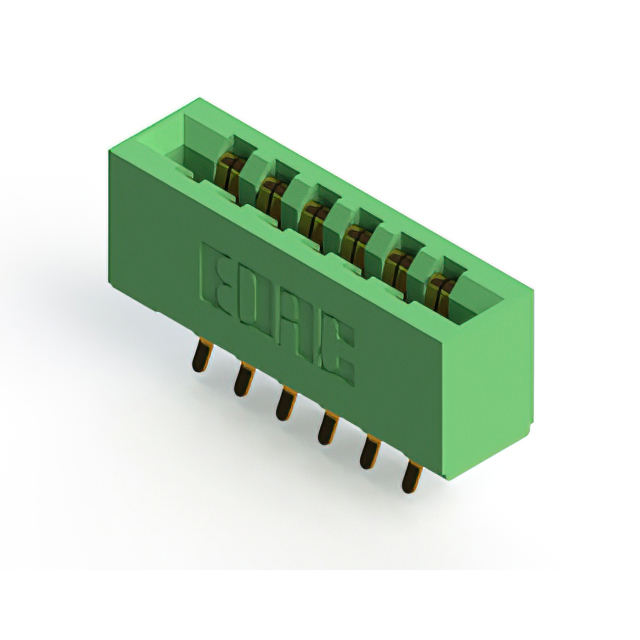

The EDAC Inc. 305-012-556-501 is a standard card edge connector from the 305 series, designed for dual-side board connections. It features 12 positions with a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The connector utilizes gold-plated copper alloy contacts and terminates via solder pins. Rated for 5 A current at temperatures ranging from -40°C to +105°C, it offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Low-profile thermoplastic insulator body design
• Vertical panel mount style with through-hole termination

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Computer peripheral expansion cards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 305 Series Ordering Guide to confirm exact pin count, row configuration, and termination type. Ensure compatibility with the target PCB thickness of 0.062 inches. Cross-reference the RoHS status and material composition with the latest datasheet to meet regulatory requirements for your specific assembly process.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for 12-position signal routing. The 0.156-inch pitch accommodates standard board layouts, while the vertical mounting style suits panel-integrated designs. Consider the 5 A current rating and wide temperature range for robust industrial environments requiring durable thermal plastic construction.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in modular electronic systems. The series provides various position counts and mounting options, maintaining consistent 0.156-inch spacing across models. These connectors support high-reliability applications in aerospace, defense, and commercial electronics sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 305-022-556-568 or 305-054-556-278, provided the position count matches the design requirement. Verify that any replacement maintains the same 0.156-inch pitch, dual-row configuration, and vertical panel mount style to ensure mechanical and electrical compatibility.
