305-014-500-208

Edgeboard Connectors Overview

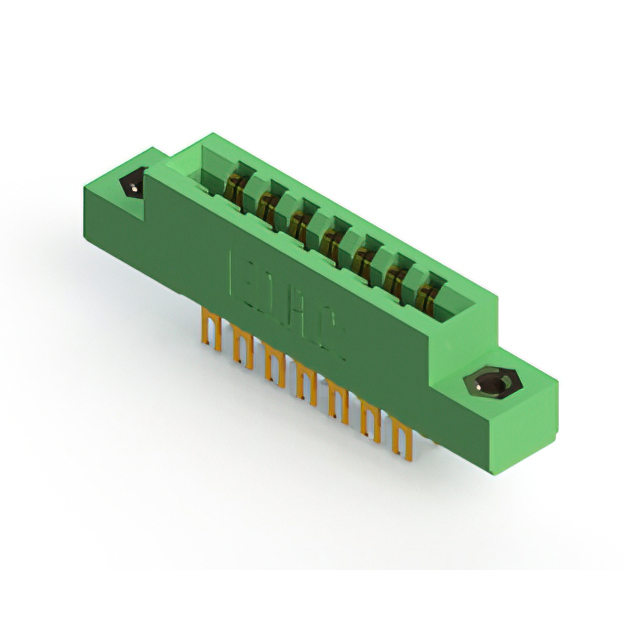

The EDAC Inc. 305-014-500-208 is a dual-edge female card edge connector featuring 14 positions arranged in two rows of seven contacts each. It utilizes a 0.156-inch (3.96mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The unit employs gold-plated copper alloy contacts with a 10.0µin thickness, housed in green thermoplastic polyester insulation. Designed for panel mount installation via through-hole soldering, it operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability
• Panel mount design with through-hole solder termination

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Computing hardware peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating specifications and flange characteristics. Ensure compatibility with target PCB thickness tolerances before procurement. Confirm RoHS compliance status and environmental certifications required for the intended deployment region. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability and lead times.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface with a 0.156-inch pitch is required for panel-mounted applications. Consider the 14-position capacity and specified board thickness range during mechanical integration. Evaluate the operating temperature limits and material composition against environmental stressors. Verify that the through-hole solder termination method aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and termination styles for standard card edge applications. The series supports diverse mounting configurations and contact materials to accommodate different electrical and mechanical requirements across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the 305 series. Ensure any replacement matches the original pitch, position count, and termination type. Validate mechanical dimensions and electrical ratings before implementation.
