Edgeboard Connectors Overview

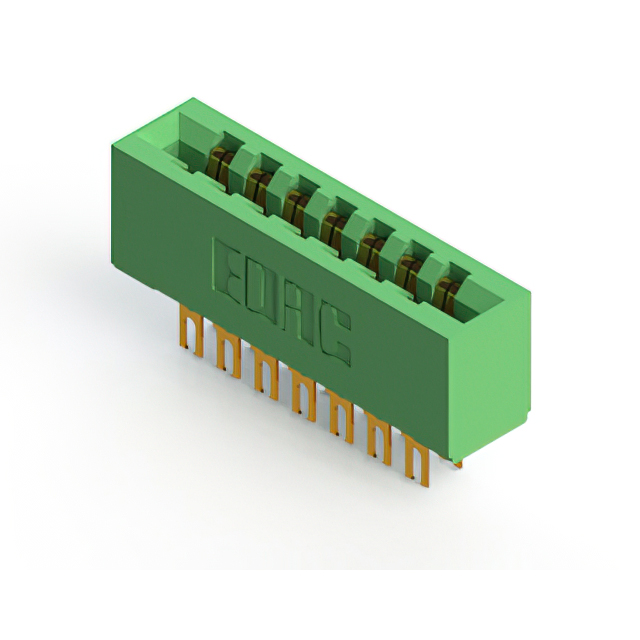

The EDAC Inc. 305-014-500-501 is a dual-edge female card edge connector from the 305 Series, designed for panel mount applications. It features 14 positions with a 0.156-inch (3.96mm) contact spacing and supports board thicknesses of 0.054 to 0.070 inches. The contacts are gold-plated copper alloy with a 10.0µin thickness, utilizing a half-beam clamping mechanism. Rated for -40°C to 105°C, it employs thermoplastic polyester insulation and offers flush mounting with top openings.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with half-beam clamping contacts for secure board retention
• Gold-plated copper alloy terminals ensuring reliable electrical performance
• Thermoplastic polyester insulation providing stability across wide temperature ranges

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring dual-edge interface
• Industrial control systems utilizing standard card edge modules
• Communication equipment housing modular circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's ordering guide to ensure correct termination style and flange characteristics. Confirm that the target PCB thickness falls within the specified 0.054 to 0.070 inch range for proper mechanical engagement. Cross-reference the RoHS status and material declarations with current regulatory requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 0.156-inch spacing is required for panel installation. Ensure the application environment remains within the -40°C to 105°C operating temperature range. Verify compatibility with the intended card thickness and confirm that the gold plating meets the necessary corrosion resistance standards for the specific operational conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which provides standardized card edge connectors with 0.156-inch spacing. The series includes various configurations for different row counts and termination styles. The 305-014 variant specifically addresses needs for 14-position interfaces in compact panel-mount designs, offering a balance of mechanical stability and electrical reliability for general-purpose interconnect applications.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 Series ordering guide for direct substitutes with identical pin counts and spacing. Verify mechanical dimensions and flange specifications to ensure fitment compatibility. No alternative part numbers are confirmed in the provided documentation.
