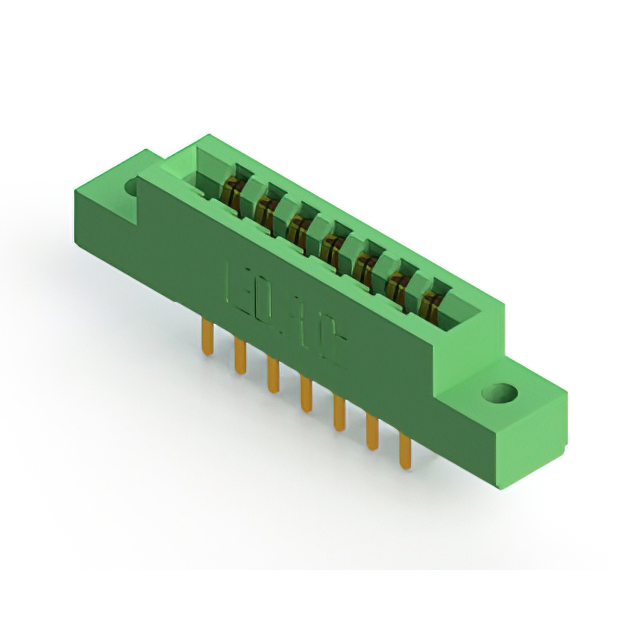

305-014-520-202

$4.91

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:6070305b8a4d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-014-520-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 14POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-014-520-202

Description：CONN EDGE DUAL FMALE 14POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：7
Number of Positions：14
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-014-520-202

305-014-520-202

Edgeboard Connectors Overview

The EDAC Inc. 305-014-520-202 is a dual-edge female card edge connector featuring 14 positions with a 0.156-inch (3.96 mm) pitch. Designed for panel mount and through-hole termination, it utilizes gold-plated copper alloy contacts housed in green thermoplastic polyester insulation. The component supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for non-specified card types
Gold-plated copper alloy contacts ensuring reliable signal transmission
Thermoplastic polyester insulation providing thermal stability

Edgeboard Connectors Applications

Industrial control systems
Power supply modules
Storage devices
Navigational equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating specifications, and flange characteristics. Ensure compatibility with target PCB thickness and mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component for applications requiring robust vertical interconnects with high thermal endurance. The dual-edge design accommodates standard non-specified cards, while the gold plating offers corrosion resistance suitable for industrial environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and configurations for diverse electronic assembly needs, emphasizing durability and precise alignment in panel-mounted installations.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing pin counts or flange options. Verify mechanical dimensions and electrical ratings when considering alternative manufacturers' equivalents.
