305-014-520-501

Edgeboard Connectors Overview

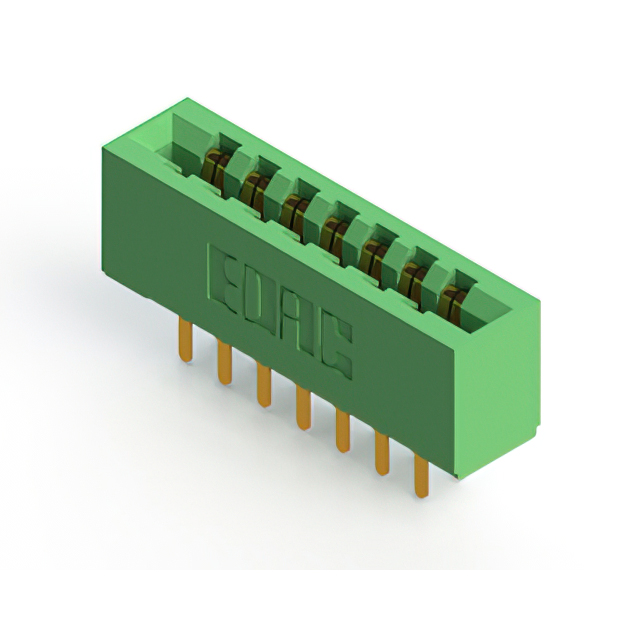

The EDAC 305-014-520-501 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features a dual female configuration with 14 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and accepts board thicknesses ranging from 1.37 mm to 1.78 mm. Contacts are constructed from copper alloy with gold plating and terminate via solder pins.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable signal transmission
• Panel mount installation style with vertical orientation
• Gold-plated copper alloy contacts for corrosion resistance
• Compatible with specified double-sided card edge boards

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Automotive electronic module interfaces
• Test and measurement instrument panels

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact flange dimensions and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current manufacturer declarations. Confirm availability through authorized distributors as lead times may vary.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 3.96 mm spacing is required. Verify that the mating card edge thickness falls within the 1.37 mm to 1.78 mm operational range. Consider the vertical panel mount requirement and solder pin termination method for PCB layout integration. Ensure environmental conditions align with the specified operating temperature limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 305 series is characterized by its robust construction and suitability for high-reliability applications requiring secure card-to-board connections.

Edgeboard Connectors Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other EDAC 305 series variants with matching pitch and position count if available. Consult manufacturer engineering for potential cross-reference options based on mechanical and electrical requirements.
