305-014-521-507

Edgeboard Connectors Overview

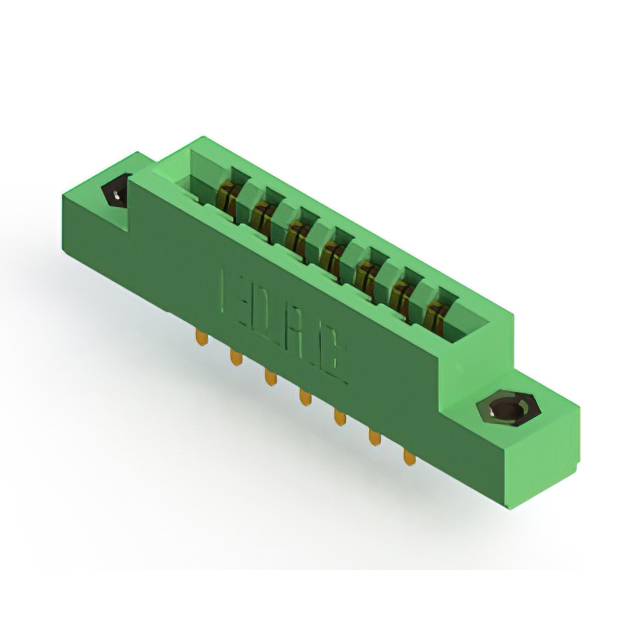

The EDAC Inc. 305-014-521-507 is a standard card edge connector from the 305 Series, designed for panel mount applications. It features a dual female configuration with 14 positions and a 3.96mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts with a 10.0µin (0.25µm) thickness to ensure reliable signal transmission. It supports solder pin termination and accommodates PCB thicknesses ranging from 1.37mm to 1.78mm. The unit is rated for 5A continuous current and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Features a dual-row female contact configuration for high-density interconnects
• Constructed with thermoplastic polyester insulation for environmental stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interfaces
• Medical equipment utilizing specialized interconnect solutions
• Agricultural technology hardware operating in harsh environments

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required flange characteristics, as variations exist within the series. Confirm compliance with RoHS3 and REACH standards if applicable to your manufacturing region. Ensure the selected variant aligns with the necessary mounting style and contact plating specifications for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, panel-mount card edge connector with a 3.96mm pitch is required. The 305-014-521-507 variant specifically offers a non-specified dual edge design suitable for general-purpose applications. Consider the 5A current rating and thermal performance limits when designing the system interface.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which provides various mounting options and row configurations. The series is engineered for durability in demanding sectors such as medical and agricultural technologies. The 305-014-521-507 represents a specific configuration within this broader family, distinguished by its position count and termination type.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 Series variants with identical 14-position counts and 3.96mm pitch, such as the 305-014-521-202 or 305-014-520-507, provided the flange and termination details match the assembly requirements.
