305-016-500-202

$4.97

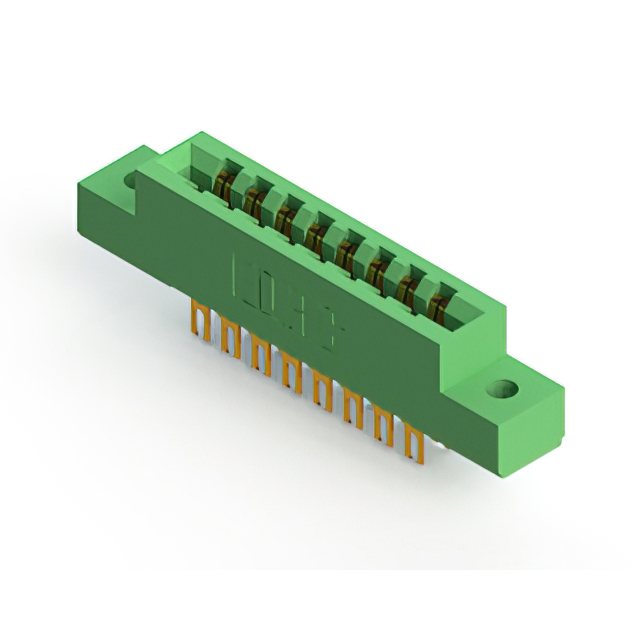

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:f1b92f28e913 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-016-500-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-016-500-202

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-016-500-202

305-016-500-202

Edgeboard Connectors Overview

The EDAC 305-016-500-202 is a standard card edge connector from the 305 series, designed for dual-edge card applications. It features 16 positions with a 0.156-inch (3.96 mm) pitch and supports board thicknesses between 0.054 and 0.070 inches. The connector utilizes gold-plated copper alloy contacts with a 10.0 µin thickness and offers a 5 A current rating at 1800 VACrms. It employs a solder lug termination style for panel mounting and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure alignment
Provides high dielectric strength with 1800 VACrms insulation capability
Features semi-wavering contact type for reliable signal transmission

Edgeboard Connectors Applications

Panel-mounted electronic assemblies requiring dual-edge card interface
Industrial control systems utilizing polarized card edge modules
High-voltage signal routing in standardized connector frameworks

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required termination style and flange configuration. Confirm compatibility with the target card thickness range of 0.054 to 0.070 inches. Ensure the application environment remains within the specified operating temperature limits. Cross-reference the polarizing key requirements against the mating card design.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with polarizing key support is required. The 0.156-inch pitch suits applications needing wider spacing for high-voltage isolation. Panel mount installation is necessary for this specific housing design. Verify that the 5 A current rating meets the circuit load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and termination options for dual-edge applications. The 305 series is characterized by its thermoplastic insulation and robust mechanical design for industrial environments.
