305-016-500-507

Edgeboard Connectors Overview

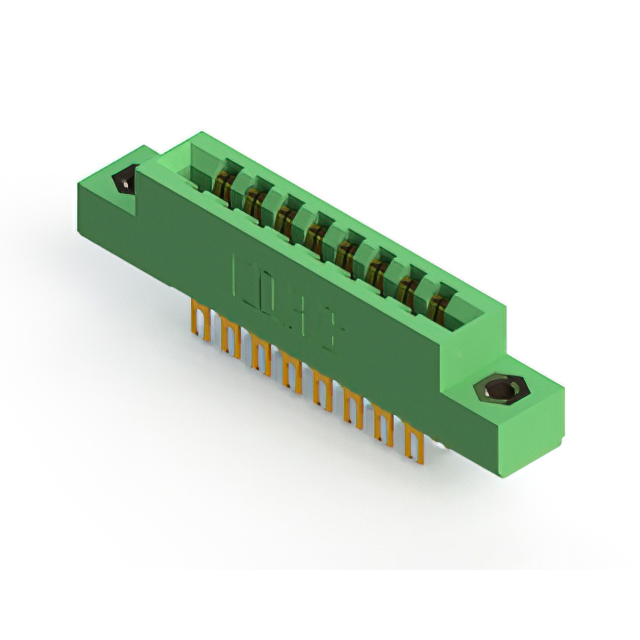

The EDAC Inc. model 305-016-500-507 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. This component features a dual-row configuration with 16 positions and a pitch of 3.96 mm (0.156 inches). It is engineered to accommodate a board thickness of 1.57 mm. The contacts are constructed from copper alloy and feature gold plating on the mating area, while the tails utilize tin plating over nickel underplating. The connector supports a continuous current rating of 5 A and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row contact configuration for high-density signal routing
• Vertical panel mount style for secure structural integration
• Gold-plated mating surfaces ensuring reliable conductivity
• Compatible with between-contact and in-contact polarizing keys

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Computing hardware peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating specifications and mechanical tolerances. Ensure compatibility with the target PCB edge thickness of 1.57 mm before procurement. Cross-reference the part number with authorized distributors to confirm availability status and lead times, as supply chain conditions may vary by region.

Edgeboard Connectors Selection Notes

Select this connector when a vertical panel mount solution with a 3.96 mm pitch is required. The dual-row design is suitable for applications needing 16 distinct connection points. Verify that the mating card edge meets the specified thickness tolerance. Consider the 5 A current rating and environmental operating range when defining system requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting styles, all sharing a consistent 3.96 mm pitch. These connectors are widely used in modular electronic systems requiring robust mechanical retention and reliable electrical performance across diverse industrial environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalent part numbers. Generic cross-references may not match critical dimensions such as row spacing or housing material properties.
