305-016-520-204

Edgeboard Connectors Overview

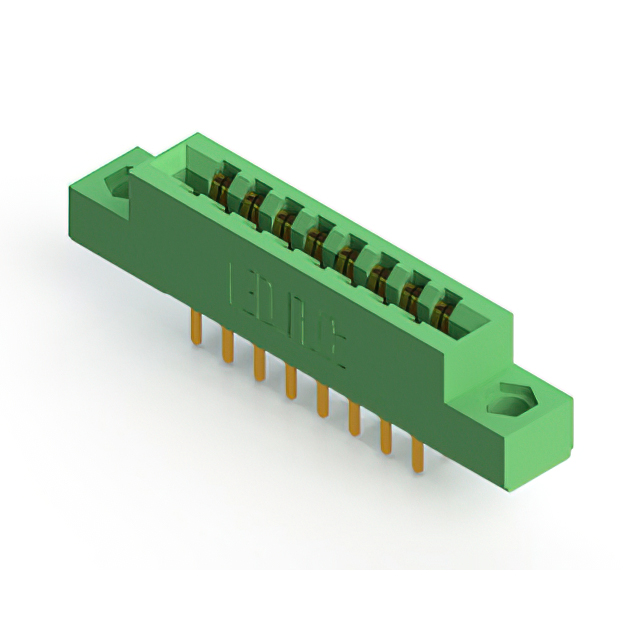

The EDAC Inc. 305-016-520-204 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 16 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum operating temperature of +105°C. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. It is rated for 5 A current capacity and offers an insulation resistance of 5 GOhms. The housing is constructed from green thermoplastic polyester, providing mechanical stability and electrical isolation.

Edgeboard Connectors Feature Summary

• Dual-row configuration for high-density interconnect applications
• Gold-plated contacts on copper alloy substrate for enhanced conductivity
• Thermoplastic polyester housing for thermal and chemical stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted connections
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics modules needing reliable signal pathways

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB edge guide dimensions before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 16-position interface with a 3.96 mm pitch is required. Consider the vertical mounting style and solder pin termination for panel integration. Evaluate the 5 A current rating and +105°C temperature limit against the system's operational environment to ensure long-term reliability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting options for diverse electronic applications. The 305-016-520-204 specifically addresses needs for compact, dual-sided connectivity in constrained spaces while maintaining high durability standards.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for alternative position counts. Verify that substitute parts maintain identical pitch, row count, and termination type to ensure mechanical fit without redesigning the host assembly.
