305-016-555-578

Edgeboard Connectors Overview

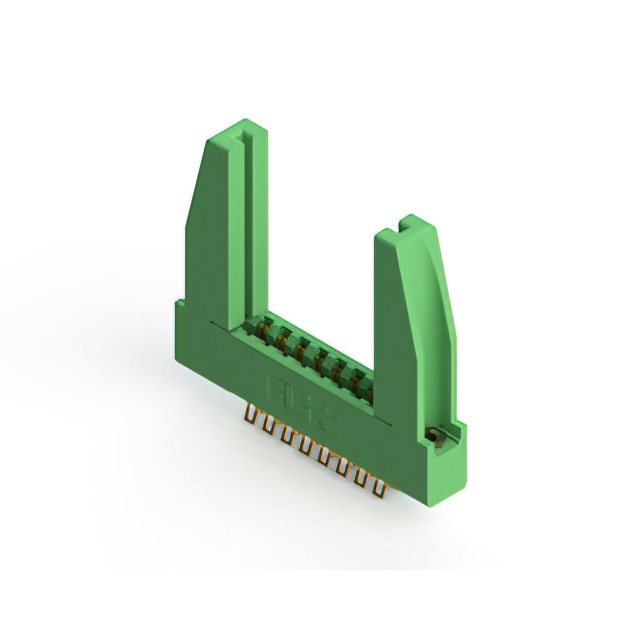

The EDAC Inc. 305-016-555-578 is a standard card edge connector featuring 16 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts for reliable signal transmission and includes a green thermoplastic insulator body. Designed for panel mounting, this vertical header provides a continuous current rating of 5 A and supports an operating temperature range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design accommodates non-specified board types
• Gold-plated copper alloy terminals ensure corrosion resistance
• Thermoplastic housing provides structural stability

Edgeboard Connectors Applications

• Panel-mounted electronic interconnects
• Industrial control system backplanes
• Telecommunications equipment headers

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the selected variant matches the required panel mounting style and vertical orientation for the intended assembly.

Edgeboard Connectors Selection Notes

Select this model when a 16-position dual-row interface is required for panel-mount applications. The 3.96 mm pitch suits standard board layouts while the 5 A rating supports moderate power loads. Consider the vertical orientation and thermoplastic insulation properties for environmental resilience within the specified temperature limits.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, maintaining consistent electrical characteristics across the lineup. The 305-016-555-578 specifically addresses needs for compact, high-reliability connections in space-constrained panel installations.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series variants with matching 16-position dual-row configurations. Verify identical 3.96 mm pitch and 1.57 mm board thickness acceptance. Cross-reference mechanical dimensions and terminal plating requirements to ensure functional equivalence.
