Edgeboard Connectors Overview

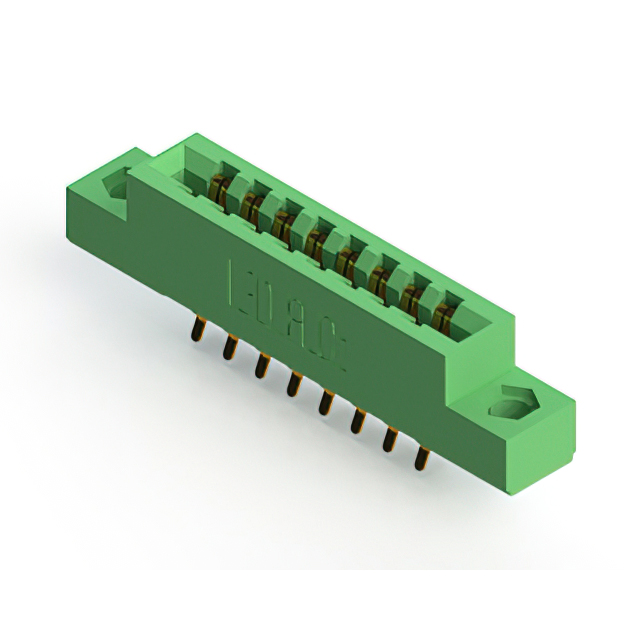

The EDAC Inc. 305-016-556-204 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 16 positions with a 3.96 mm (0.156 inch) pitch and supports two contact rows. The connector utilizes gold-plated copper alloy contacts with a half-beam termination type for reliable solder pin connections. It accommodates PCB thicknesses ranging from 1.37 mm to 1.78 mm (0.054 to 0.070 inches). Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female connector configuration with gold-plated half-beam contacts for secure mating
• Thermoplastic polyester insulator housing providing high insulation resistance and thermal stability
• Panel mount design with flanged mounting holes for stable vertical installation

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact plating thickness and terminal style. Ensure compatibility with the target printed circuit board thickness specifications before procurement. Confirm RoHS compliance status through the latest certified documentation provided by EDAC Inc. to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with a 3.96 mm pitch is required. The 16-position count suits moderate-density signal routing needs. Verify that the panel-mount form factor aligns with the mechanical enclosure design constraints and that the operating temperature range meets the environmental conditions of the intended application.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting options for diverse electronic assembly requirements. The 305-016-556-204 specifically addresses applications requiring robust dual-row connectivity with standardized dimensions and reliable electrical performance characteristics.

Edgeboard Connectors Replacement Considerations

Consult EDAC Inc. directly for confirmed substitute part numbers or alternative configurations within the 305 series. Cross-referencing with other manufacturers requires strict verification of pitch, row count, and mechanical mounting dimensions to ensure functional equivalence.
