305-018-555-507

Edgeboard Connectors Overview

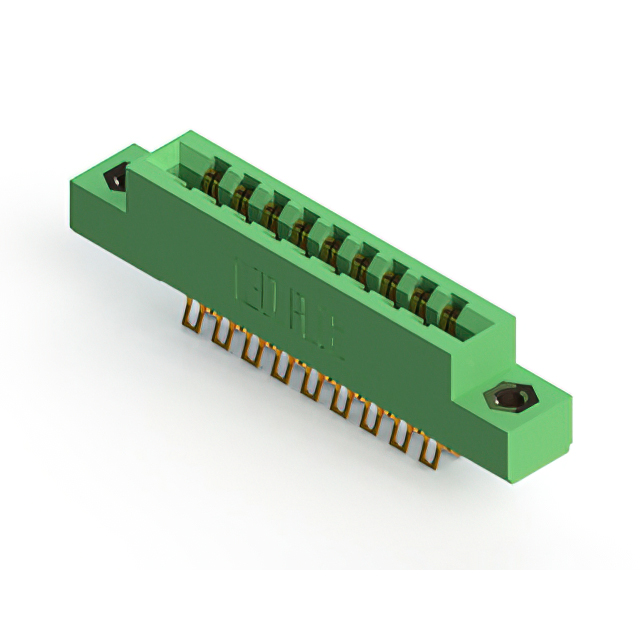

The EDAC Inc. 305-018-555-507 is a standard card edge connector from the 305 series, designed for panel mounting with a vertical orientation. It features an 18-position dual female configuration with a 3.96 mm (0.156 inch) pitch. The connector supports PCB thicknesses of 1.57 mm and utilizes gold-plated copper alloy contacts with a solder lug termination type. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and includes a thermoplastic housing.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold plating on mating areas ensures reliable signal transmission
• Panel mount construction with vertical installation angle
• Thermoplastic insulation provides structural stability

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating specifications and termination style. Ensure compatibility with the target PCB thickness and panel mounting requirements before procurement. Cross-reference the RoHS compliance status with current regulatory standards for the intended market.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for panel-mounted applications. Confirm that the 18-position count aligns with the circuit interface needs. Verify that the 5 A current rating and operating temperature range meet the environmental conditions of the final assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options, all sharing a consistent 3.96 mm pitch. The 305-018-555-507 specifically represents the 18-position variant in the dual female configuration.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with different position counts or termination styles. No alternative manufacturer part numbers are publicly confirmed as compatible replacements.
