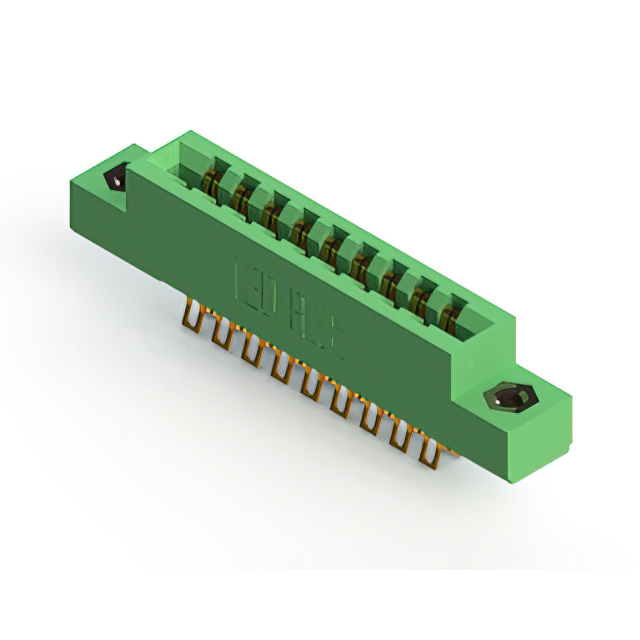

305-018-555-508

$8.66

Description：CONN EDGE DUAL FMALE 18POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:84c205ca29c0 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-018-555-508 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-018-555-508

Description：CONN EDGE DUAL FMALE 18POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：9
Number of Positions：18
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-018-555-508

305-018-555-508

Edgeboard Connectors Overview

The EDAC Inc. 305-018-555-508 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features an 18-position dual-row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic housing. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The unit employs solder lug termination and accommodates board thicknesses up to 1.57 mm.

Edgeboard Connectors Feature Summary

Dual-edge female contact design for secure connection
Gold plating on copper alloy contacts for corrosion resistance
Thermoplastic insulation providing high dielectric strength
Panel mount vertical orientation with solder lug termination

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument interfaces
Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required board thickness and termination style. Confirm that the 1.57 mm maximum board thickness specification aligns with the target PCB design. Check RoHS compliance status through the manufacturer's documentation before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required for panel-mounted installations. Ensure the application environment remains within the specified -40°C to +105°C operating temperature range. Verify that the 5 A current rating meets the circuit requirements and that the solder lug termination method matches the assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and row configurations while maintaining consistent 3.96 mm spacing. These connectors are engineered for reliable signal transmission in demanding environments, utilizing robust thermoplastic housings and durable metal contacts for long-term performance.
