305-020-500-504

Edgeboard Connectors Overview

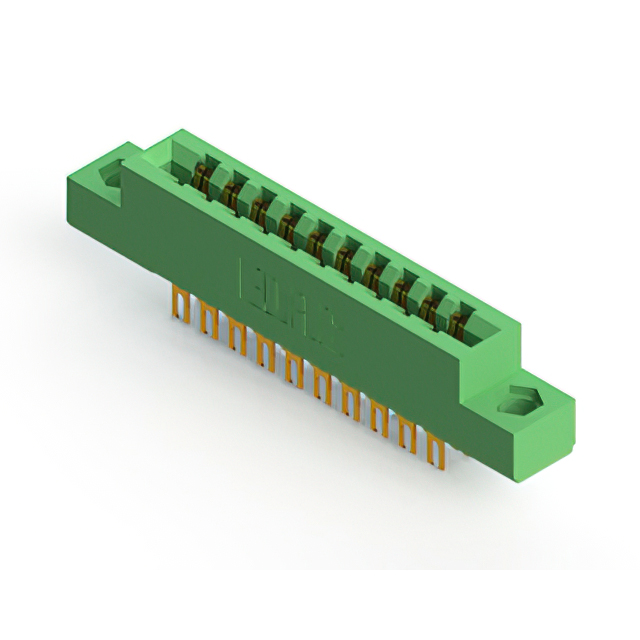

The EDAC Inc. 305-020-500-504 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. This dual female receptacle features 20 positions with a 3.96 mm (0.156 inch) pitch. It accommodates a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It employs a solder termination type and is housed in green thermoplastic polyester insulation, providing an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual row female configuration for high-density interconnect applications
• Gold-plated copper alloy contacts ensure stable electrical performance
• Thermoplastic polyester housing provides robust mechanical support
• Vertical panel mount style facilitates secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring durable card edge interfaces
• Telecommunications equipment utilizing standard PCB mounting
• Automotive electronics needing reliable signal connections
• Test and measurement instruments requiring precise contact alignment

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness, material composition, and environmental ratings. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference manufacturer datasheets for any recent design changes or obsolescence notices. Confirm RoHS compliance status through official certification documents rather than distributor summaries.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with 20 positions and 3.96 mm pitch is required. Verify that the application environment stays within the specified -40°C to +105°C operating range. Ensure the PCB thickness matches the 1.57 mm specification for proper retention. Consider the vertical panel mount style for integration into chassis-based designs requiring direct card insertion.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are widely used in various electronic industries. The series offers multiple position counts and mounting styles to suit different design needs. The 305-020-500-504 specifically represents a 20-position variant optimized for general-purpose applications requiring reliable connectivity and standard form factor compatibility.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' connectors without verifying dimensional and electrical specifications. Check for equivalent pitch, row count, and termination methods before considering substitutes.
