305-020-555-504

$6.87

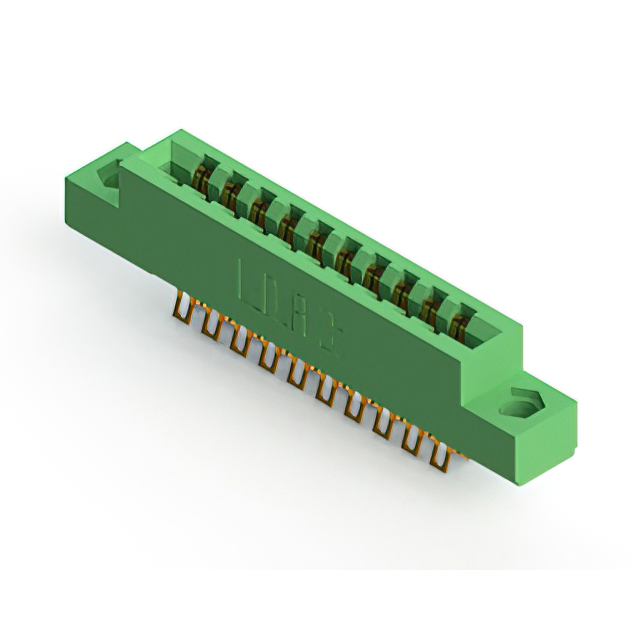

Description：CONN EDGE DUAL FMALE 20POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:dd325ad633bf Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-020-555-504 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-020-555-504

Description：CONN EDGE DUAL FMALE 20POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：10
Number of Positions：20
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-020-555-504

305-020-555-504

Edgeboard Connectors Overview

The EDAC Inc. 305-020-555-504 is a standard card edge connector featuring 20 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The connector employs gold-plated copper alloy contacts for reliable signal transmission and includes a green thermoplastic polyester insulator body. Designed for panel mounting, it supports vertical installation and offers a continuous current rating of 5 A.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure board alignment
Features a low-profile insulator body to minimize overall assembly height
Provides robust electrical performance with a 5 A continuous current rating

Edgeboard Connectors Applications

Panel-mounted electronic assemblies requiring secure card edge interfaces
Industrial control systems utilizing standardized PCB modules
Communication equipment needing reliable dual-edge connector solutions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required polarizing key configurations and insulation material specifications. Confirm that the target application environment remains within the specified operating temperature range and voltage ratings to maintain long-term reliability and safety compliance.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required for panel-mount applications. Ensure the host PCB thickness matches the 1.57 mm design specification. Consider the availability of compatible polarizing keys if mechanical locking or precise alignment is necessary for the specific system integration requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting styles, all sharing common electrical characteristics such as the 5 A current rating and gold-plated contact finish. The 305 series is designed for general-purpose interconnect applications requiring durable and reliable connections.
