305-024-500-207

Edgeboard Connectors Overview

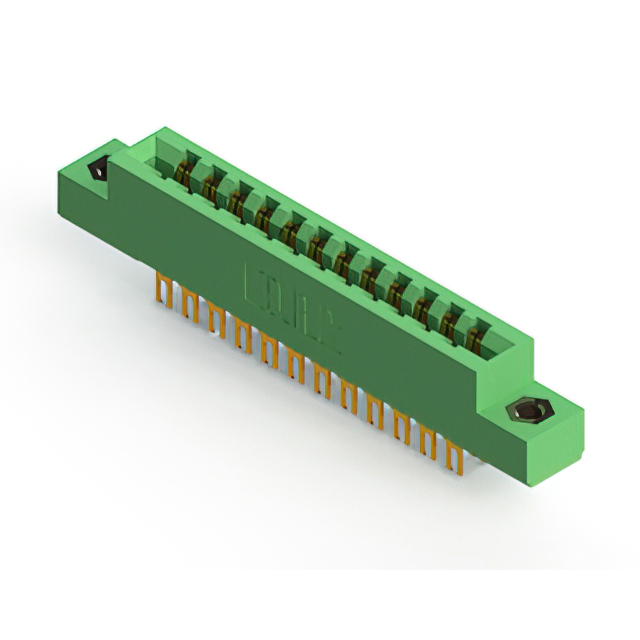

The EDAC 305-024-500-207 is a standard card edge connector featuring 24 positions arranged in two rows. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a thickness of 1.57 mm. The component employs gold-plated copper alloy contacts terminated via solder lugs for secure electrical connection. Designed for vertical panel mounting, it operates within a temperature range of -40°C to +105°C and carries a 5 A current rating.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for enhanced board alignment
• Features a low-profile insulator body constructed from thermoplastic material
• Provides reliable electrical performance through gold-plated copper alloy contacts

Edgeboard Connectors Applications

• Industrial control systems requiring dual-edge card connections
• Electronic modules utilizing polarized keying mechanisms
• Panel-mounted interface hardware for vertical PCB integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact plating thickness and insulation color specifications. Ensure the ordering part number matches the required row count and terminal termination style. Confirm compliance with relevant environmental directives such as RoHS before final procurement decisions are made.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row configuration with 24 positions is required for vertical panel installation. It is suitable for applications needing polarizing key acceptance and a nominal board thickness of 1.57 mm. Verify that the operating environment remains within the specified temperature limits and current ratings.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its robust construction and compatibility with various polarizing key types. It serves as a reliable interconnect solution for dual-edge female connectors in industrial and commercial electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and mounting style requirements.
