305-024-500-212

Edgeboard Connectors Overview

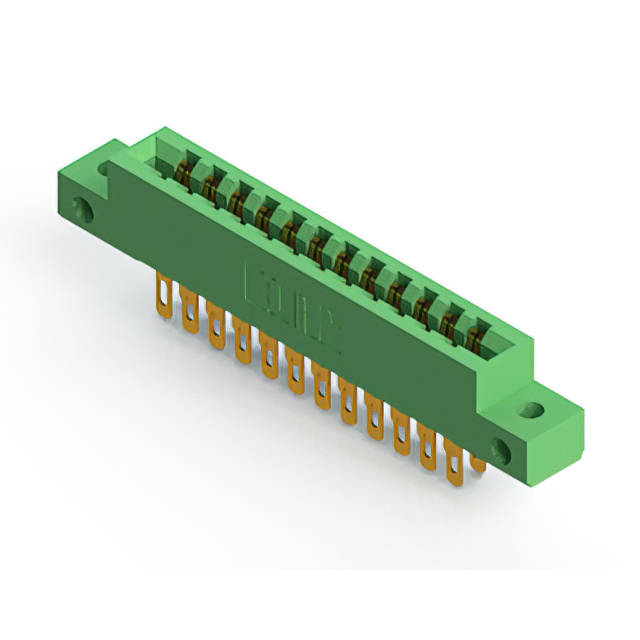

The EDAC Inc. 305-024-500-212 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 24 positions and a pitch of 3.96 mm. The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts. It offers a continuous current rating of 5 A and accepts between-contact and in-contact polarizing keys. The housing is constructed from thermoplastic polyester, ensuring durability in vertical mounting orientations.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure mating
• Dual female contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring polarized connections
• Panel-mounted electronic assemblies needing high reliability
• Communication equipment interfaces
• Test and measurement instrumentation backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes to confirm compatibility with required polarizing keys and termination styles. Confirm that the 1.57 mm board thickness matches the target PCB design. Ensure the vertical panel mount orientation aligns with the mechanical enclosure constraints. Cross-reference the 5 A current rating against the application's thermal requirements.

Edgeboard Connectors Selection Notes

Select this component when polarizing key acceptance is mandatory for assembly alignment. The 3.96 mm pitch suits standard double-sided edge cards. Consider the 5 A rating for power distribution needs. Verify that the thermoplastic polyester material meets environmental exposure standards for the intended operating temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by robust construction and versatile mounting options. The 305 series typically includes various position counts and termination types to accommodate diverse PCB layout requirements across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official EDAC catalogs for direct equivalents or cross-reference compatible parts based on identical pitch, position count, and polarizing key specifications.
