305-024-520-502

Edgeboard Connectors Overview

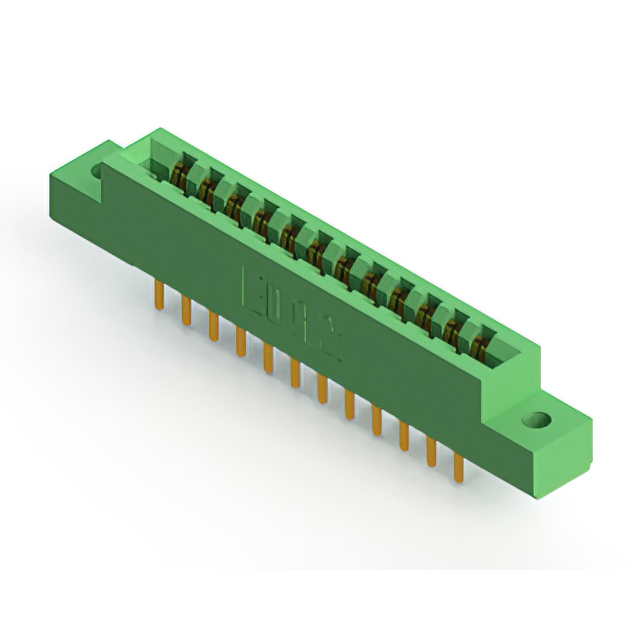

The EDAC Inc. 305-024-520-502 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features 24 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with a solder lug termination type. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row configuration with gold-plated copper alloy contacts for reliable signal transmission.
• Vertical panel mount design with solder lug termination for secure PCB integration.
• Thermoplastic housing providing structural integrity and electrical insulation.

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard board thicknesses
• Test and measurement devices needing high-reliability connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to ensure correct contact plating and termination style. Confirm that the required board thickness aligns with the 1.57 mm specification. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS requirements if applicable to the target market.

Edgeboard Connectors Selection Notes

Select this component when a 24-position dual-row connector is required for vertical panel installation. Ensure the application environment stays within the -40°C to +105°C operating range. Verify that the mating card edge thickness matches the specified 1.57 mm dimension. Consider the 5 A current rating for power distribution needs in the circuit design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options. The 305 series is characterized by its thermoplastic housing and gold-plated contacts, suitable for general-purpose electronic applications requiring durable interconnect solutions.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 series ordering guide for direct substitutes with different position counts or termination styles. Cross-reference with other EDAC series such as 315 or 357 only if mechanical dimensions are compatible. Verify pinout and electrical ratings before substituting with components from other manufacturers.
