305-058-500-207

Edgeboard Connectors Overview

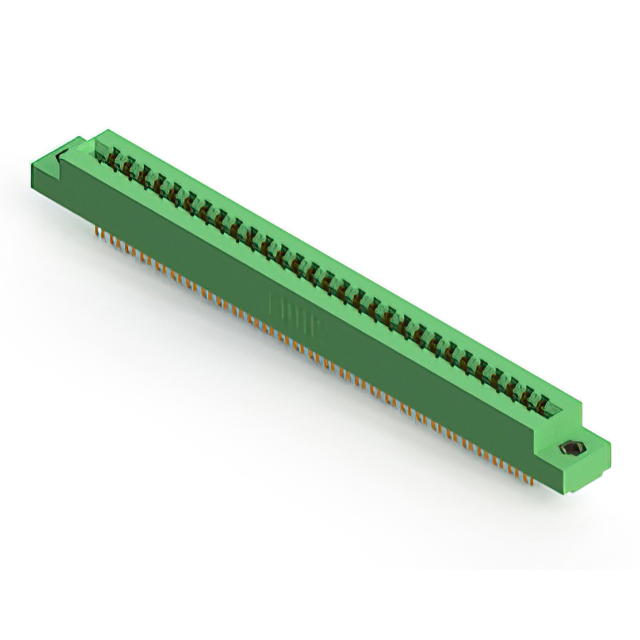

The EDAC Inc. 305-058-500-207 is a standard card edge connector header featuring 58 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and a 3.56 mm (0.140 inch) row spacing. Designed for panel mount installation at a vertical angle, the connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The contacts are constructed from copper alloy with gold plating to ensure reliable conductivity.

Edgeboard Connectors Feature Summary

• Dual row female header design for secure board retention
• Gold-plated copper alloy contacts for corrosion resistance
• Low profile insulator body construction
• Vertical panel mount orientation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules
• Computing hardware peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required termination style and insulation color before purchase. Confirm that the target application supports the specified 1.57 mm PCB thickness and 3.96 mm pitch dimensions. Ensure compatibility with existing panel mounting hardware and verify environmental ratings against operational temperature requirements.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection is required for thick PCBs. The 58-position count provides substantial I/O capacity within a compact footprint. Verify that the vertical panel mount style aligns with the mechanical enclosure design constraints and that the dual-row layout fits the available board space.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent dimensional standards. This specific model represents a mid-range density option within the lineup, balancing connectivity needs with physical size constraints for modular electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts from other manufacturers offering identical 3.96 mm pitch and 1.57 mm board thickness specifications. Ensure substitute components match the 58-position dual row configuration and vertical panel mount style to maintain mechanical fit.
