305-058-520-202

Edgeboard Connectors Overview

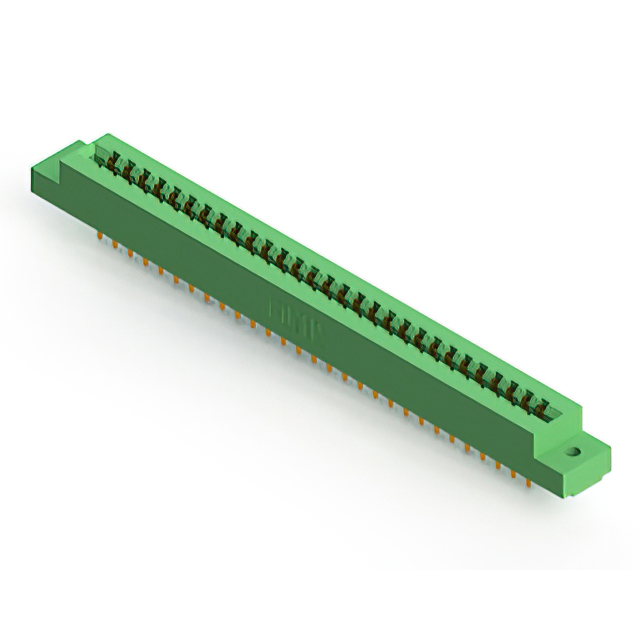

The EDAC Inc. 305-058-520-202 is a standard card edge connector from the 305 series, designed for panel mount and through-hole installation. It features 58 positions with a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. Rated for 5 A continuous current and 1800 VACrms insulation voltage, it supports dual-edge female connections. The housing is constructed from green thermoplastic polyester, providing durability in industrial environments.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Low profile insulator body design for compact assembly requirements
• Gold-plated copper alloy contacts ensure stable electrical performance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment with high-density signaling needs
• Automotive electronics utilizing standardized card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with the target PCB thickness and polarizing key requirements before finalizing procurement orders to prevent integration errors.

Edgeboard Connectors Selection Notes

Select this component when a 58-position dual-edge connector with 3.96 mm pitch is required. Confirm that the application environment supports the specified temperature range and that the panel mounting style aligns with the mechanical design constraints of the host enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options, all sharing common mechanical dimensions and electrical ratings. The 305 series is widely used in applications demanding reliable vertical or panel-mounted interconnections for double-sided circuit boards.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or termination styles. Verify mechanical footprint compatibility and electrical ratings before replacing with alternative manufacturers' components.
