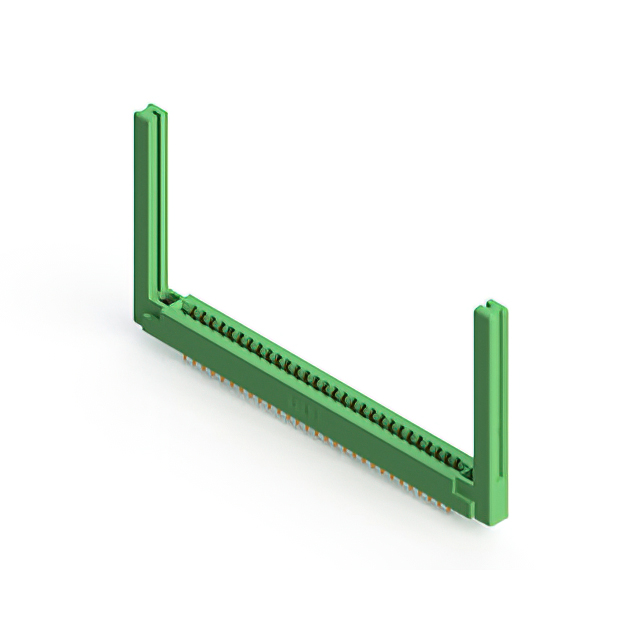

305-058-520-258

$11.72

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:9a971426fb80 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-058-520-258 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 58POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-058-520-258

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-058-520-258

305-058-520-258

Edgeboard Connectors Overview

The EDAC Inc. 305-058-520-258 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 58 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes gold-plated copper alloy contacts rated for 5 A current and employs a solder pin termination type. The housing is constructed from green thermoplastic polyester, providing an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Dual-edge female connector design accommodating non-specified card types
Gold-plated copper alloy contacts ensure reliable electrical performance
Low-profile insulator body constructed from thermoplastic polyester
Solder pin termination facilitates secure PCB mounting

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Test and measurement instrumentation modules
Computer peripheral interface cards

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required configuration, as variations in plating thickness or housing material may exist within the product family. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure compatibility with the target PCB thickness of 1.57 mm to guarantee proper mechanical engagement and signal integrity during operation.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection is required for dual-edge boards with a 3.96 mm pitch. The 58-position count suits applications needing substantial I/O capacity within a compact footprint. Consider the vertical panel mount style if chassis integration is necessary. Verify that the 5 A current rating aligns with the power distribution requirements of the connected circuitry.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in modular electronic systems. The series offers various position counts and mounting styles to support diverse design needs. The 305-058-520-258 specifically addresses the need for durable connections in environments where thermal stability and corrosion resistance are critical for long-term reliability.
