305-058-521-512

Edgeboard Connectors Overview

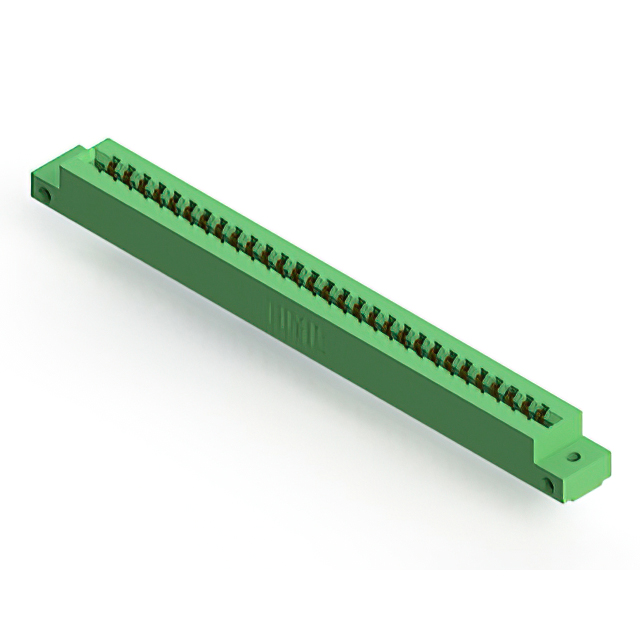

The EDAC Inc. 305-058-521-512 is a standard card edge connector from the 305 series, designed for panel mount installation with vertical orientation. It features 58 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. It supports solder pin termination and accommodates board thicknesses ranging from 1.37 mm to 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester housing provides structural stability
• Vertical panel mount design facilitates standardized integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment signal routing
• Automotive electronics module connections
• Medical device internal circuit interfacing

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer declarations. Cross-reference ordering guides for accurate lead times and packaging details directly from authorized sources.

Edgeboard Connectors Selection Notes

Select this component when a high-density 58-position interface is required within a 3.96 mm pitch constraint. The vertical panel mount style suits applications needing direct board-to-board or backplane connections. Verify that the operating temperature range of -40°C to +105°C meets environmental requirements. Ensure the solder pin termination method aligns with available assembly processes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, established since 1966. The series offers various position counts and configurations for diverse electronic interconnection needs. EDAC specializes in high-quality connectors for industrial and commercial applications, providing reliable solutions for complex circuit architectures.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series variants with matching 58 positions and 3.96 mm pitch. Verify mechanical dimensions and electrical ratings before substitution. Consult official cross-reference lists for equivalent parts from other manufacturers meeting identical specifications.
