305-058-555-512

Edgeboard Connectors Overview

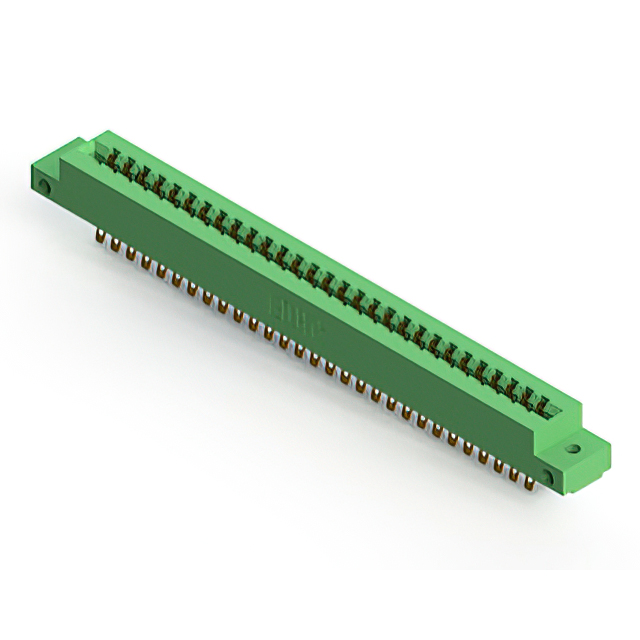

The EDAC Inc. 305-058-555-512 is a standard card edge connector from the 305 series, designed for dual-row female connections with 58 positions. It features a 3.96 mm (0.156 inch) pitch and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The connector supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. Constructed with a thermoplastic polyester housing, it accommodates board thicknesses between 1.37 mm and 1.78 mm. This component employs solder pin termination for secure panel mount installation.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 58 contact positions for high-density interconnect applications
• Gold-plated copper alloy contacts ensuring corrosion resistance and stable electrical performance
• Thermoplastic polyester insulation offering mechanical stability and thermal endurance
• Solder pin termination method facilitating robust panel-mounted assembly

Edgeboard Connectors Applications

• Industrial control systems requiring durable edge board interfaces
• Telecommunications equipment utilizing standardized card edge modules
• Test and measurement instrumentation needing reliable signal routing
• Automotive electronics assemblies demanding wide temperature operation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact plating thickness and housing color variations. Ensure that the selected variant matches the required board thickness specifications strictly. Cross-reference the RoHS compliance status with the latest manufacturer declarations before finalizing procurement orders. Confirm availability through authorized distributors as supply chain conditions may vary by region.

Edgeboard Connectors Selection Notes

Select this model when a dual-row female connector with a 3.96 mm pitch is required for vertical panel mounting. Consider the 5 A current rating and -40°C to +105°C operating range for environmental suitability. Evaluate the 58-position count against circuit density requirements. Ensure compatibility with PCBs falling within the specified 1.37 mm to 1.78 mm thickness range for proper insertion force and retention.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers various mounting options and row configurations. The series is characterized by its 3.96 mm pitch and robust construction suitable for demanding industrial environments. The 305-058-555-512 specifically addresses needs for high-pin-count dual-row interfaces in compact form factors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 305-048-520-512 or 305-054-556-278, though these differ in position counts. Verify dimensional compatibility and electrical ratings before substituting any alternative EDAC part numbers.
