305-060-520-204

Edgeboard Connectors Overview

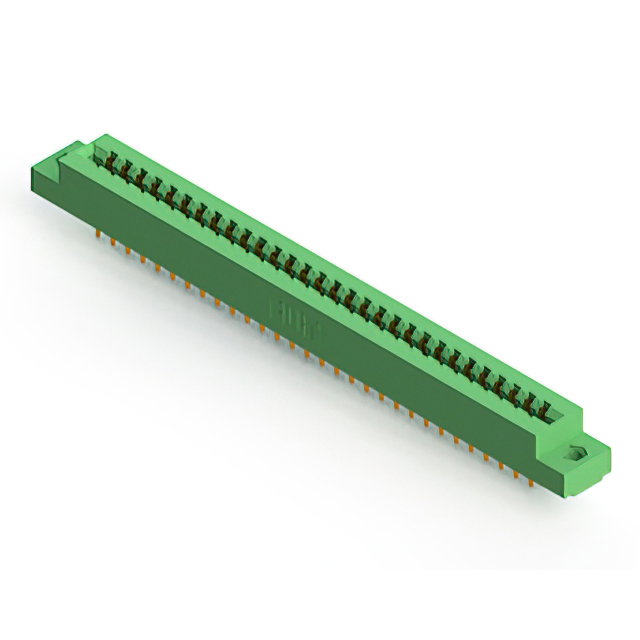

The EDAC Inc. 305-060-520-204 is a standard card edge connector from the 305 series, designed for panel mount applications. It features a dual female configuration with 60 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes a solder pin termination type and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts and a thermoplastic insulator body, it supports a current rating of 5 A.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density board connections
• Panel mount installation style with vertical orientation
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic insulator body designed for low profile integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interfaces
• Telecommunications equipment utilizing standard card edge form factors
• Test and measurement instrumentation with modular board architectures
• Automotive electronics assemblies needing durable connection points

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official documentation to ensure correct termination and mounting variations. Confirm that the required PCB thickness matches the 1.57 mm specification before ordering. Check regional availability as distribution may be limited in certain areas. Ensure compliance with RoHS directives if applicable to the target market. Cross-reference the part number with the latest datasheet to confirm material specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 60-position interface is required for panel-mounted applications. The 3.96 mm pitch suits designs needing wider spacing between contacts. Verify that the host system accommodates the vertical mounting angle and solder pin termination method. Consider the 5 A current rating for power distribution needs within the assembly constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides standard card edge solutions for various electronic industries. The series offers multiple position counts and mounting options to support diverse design requirements. The 305-060 variant specifically addresses applications needing a higher density of connections while maintaining a standard footprint compatible with common PCB layouts.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series connectors with matching 60-position counts and 3.96 mm pitch, such as the 305-060-520-504. Verify mechanical dimensions and electrical ratings before swapping components to ensure compatibility with existing tooling and performance standards.
