305-060-521-202

Edgeboard Connectors Overview

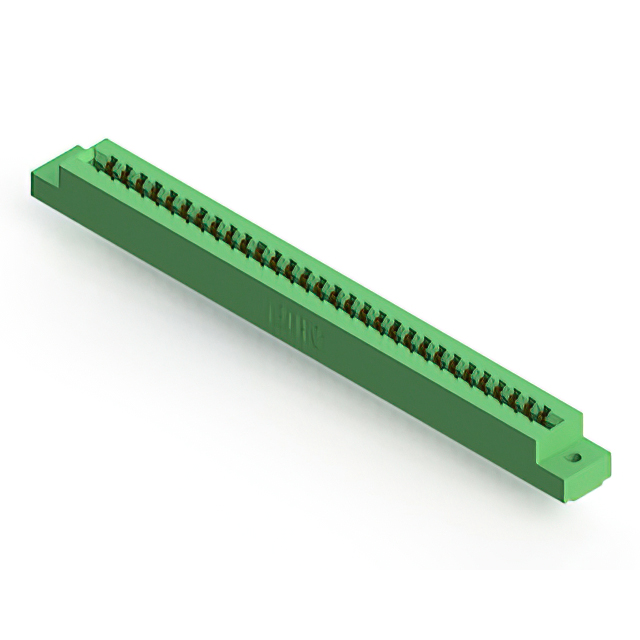

The EDAC Inc. 305-060-521-202 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. It features a dual-row configuration with 60 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. It supports board thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, providing mechanical stability and insulation.

Edgeboard Connectors Feature Summary

• Dual-row design accommodating 60 positions for high-density interconnect applications
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Thermoplastic polyester housing provides robust mechanical support and electrical insulation
• Vertical panel mount style facilitates secure installation and alignment

Edgeboard Connectors Applications

• Industrial control systems requiring durable edgeboard connections
• Medical equipment interfaces needing stable signal transmission
• Agricultural technology modules exposed to harsh environments
• General-purpose electronic assemblies utilizing standard card edge profiles

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm plating thickness, flange options, and termination type. Ensure compatibility with the target PCB card thickness specifications before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and lead times. Confirm RoHS compliance status if required by project regulations.

Edgeboard Connectors Selection Notes

Select this component when a 60-position dual-row connector with a 3.96 mm pitch is required. Consider the vertical panel mount style for fixed installations where space constraints allow. Evaluate the operating temperature range and current rating against system thermal and power requirements. Compare housing material properties with environmental exposure conditions to ensure long-term reliability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in various industrial and commercial applications. The series offers multiple position counts and mounting styles to suit different design needs. The 305-060-521-202 specifically addresses applications requiring a higher pin count while maintaining the standard pitch and form factor of the series.
