305-060-555-502

Edgeboard Connectors Overview

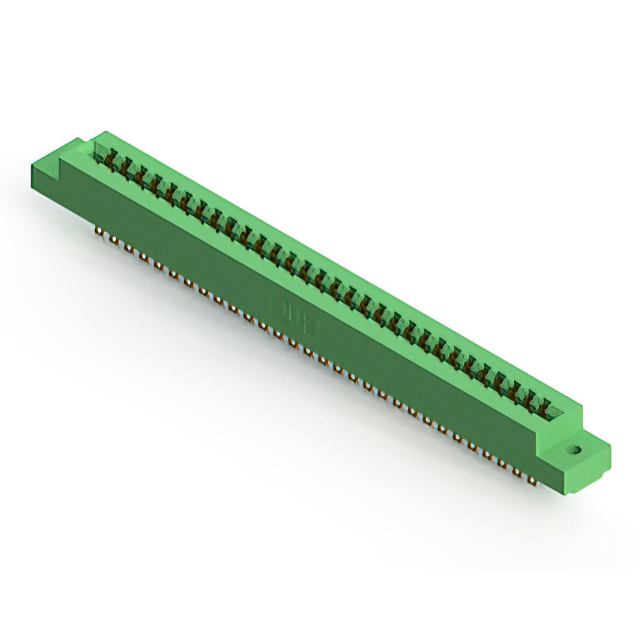

The EDAC Inc. 305-060-555-502 is a standard card edge connector featuring 60 positions with a 3.96 mm contact spacing and 3.56 mm row spacing. It accepts printed circuit boards with a nominal thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts for reliable signal transmission and includes a low-profile thermoplastic insulator body. Designed for vertical panel mounting, it serves as a dual female receptacle within the 305 series, ensuring secure mechanical engagement with compatible card edge interfaces.

Edgeboard Connectors Feature Summary

• Dual female configuration designed for robust connection to double-sided card edge circuits
• Low-profile insulator body construction facilitates compact system integration
• Gold-plated copper alloy contacts provide durable electrical conductivity
• Vertical panel mount style ensures stable orientation during installation

Edgeboard Connectors Applications

• Industrial control systems requiring high-density I/O connections
• Telecommunications equipment utilizing standardized card edge modules
• Test and measurement instrumentation interfaces
• Automotive electronic control unit interconnects

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 60-position configuration and 3.96 mm pitch before ordering. Confirm compatibility with the target PCB thickness of 1.57 mm to ensure proper mechanical fit. Check for any updated environmental compliance documentation or RoHS status directly from the manufacturer's official datasheet to meet regulatory requirements for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector is necessary for vertical panel mounting applications. Ensure the design accommodates the specified 3.96 mm contact spacing and 3.56 mm row spacing. Verify that the mating card edge board meets the nominal 1.57 mm thickness requirement. Consider the 5 A current rating per contact if power distribution is involved in the circuit design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic assembly needs. The 305-060-555-502 specifically addresses requirements for higher pin count applications while maintaining the established dimensional standards of the family.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants such as 305-040-500-502 or 305-038-520-502 only if position count differences are acceptable. Verify identical pitch and board thickness specifications before substituting. No direct public substitute part numbers are confirmed for exact functional equivalence.
